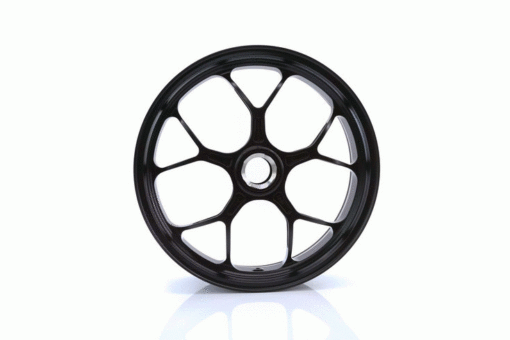

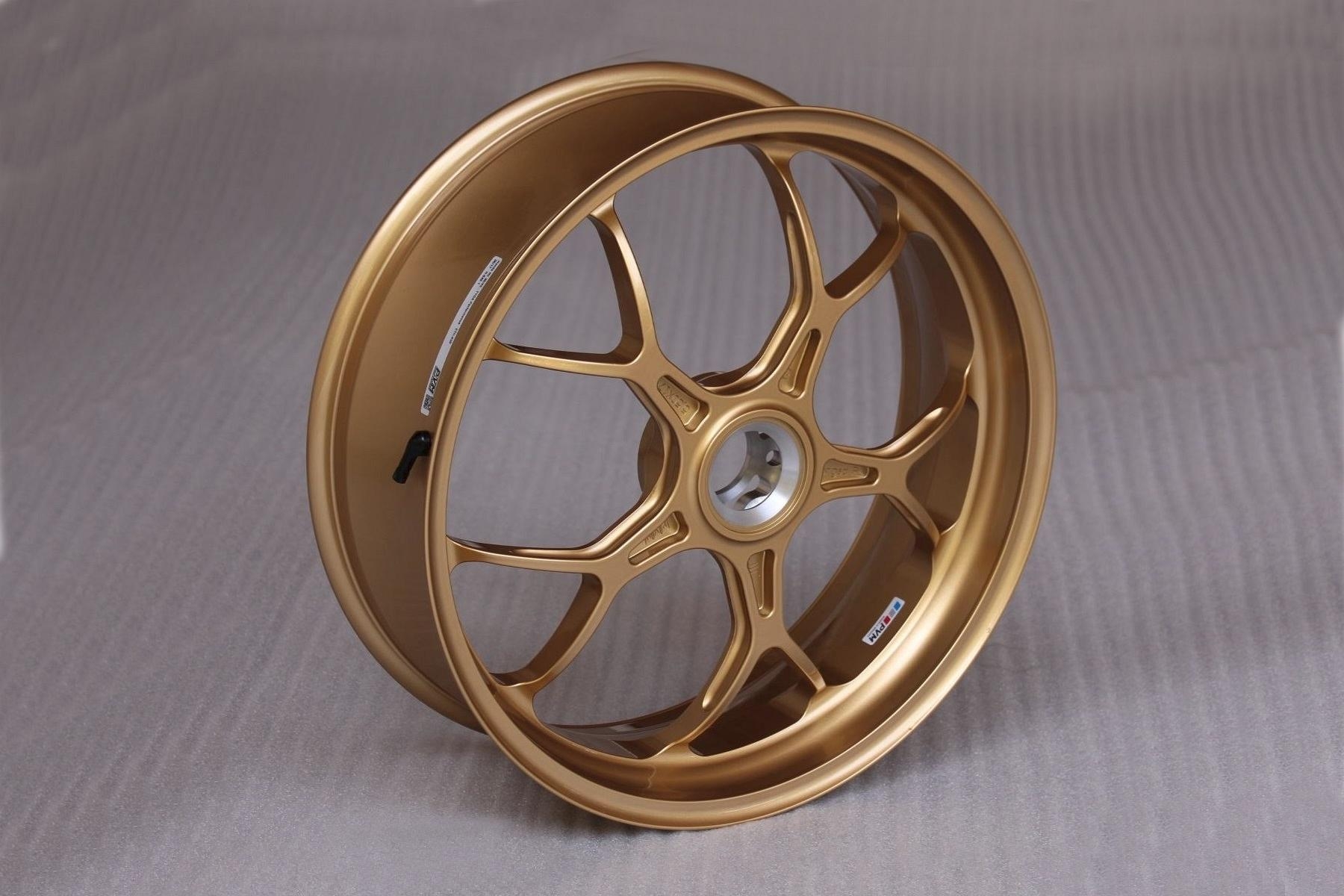

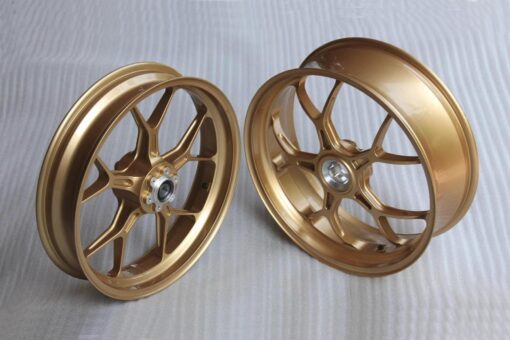

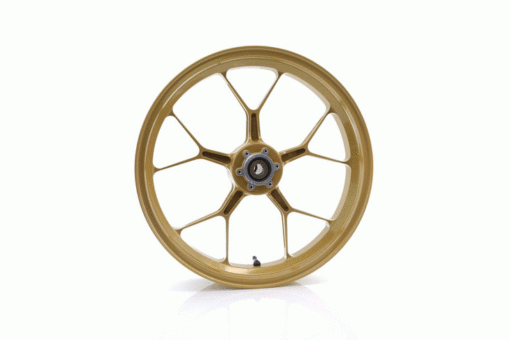

Forged Aluminium Racing wheel set, 5 spoke, PVM, Front 3.50 x 17, Rear 5.5 x 17, White

Forged Aluminium Racing wheel set, 5 spoke, PVM, Front 3.50 x 17, Rear 5.5 x 17, White

This racing wheel set has been designed specifically for the following model applications:

NX5 RS250R

RC30 VFR750R

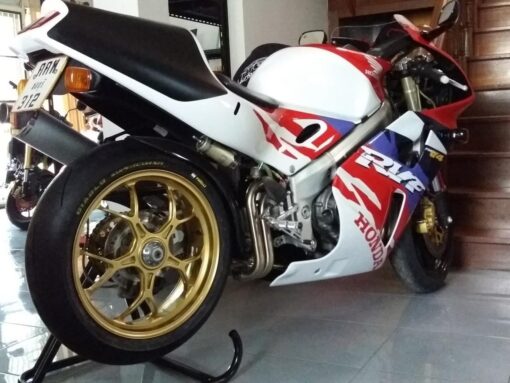

RC45 RVF750

This exciting 5 spoke forged racing wheels set, has been exclusively developed by TYGA Performance and PVM to bring you the ultimate wheel combination for your motorcycle. PVM is a long established German wheel manufacturer, supplying motorcycle manufacturers such as BMW and racing teams in Moto GP such as Tech3 as well other series around the World. For this project, TYGA Performance reached out to PVM to supply a wheel specific to the requirements of the motorcycles we ride and love. The result are these beautiful and functional wheels you see on these pages.

Technical Features of PVM Forged Aluminium Wheels

Forged from AlMgSi1 aluminium

Crop-milled rim

100% quality control of forging process

Completely CNC-manufactured and thus virtually 100% free of imbalance and faults

Low unsprung weight and low rotating mass, drastically improving acceleration, braking and handling

More stable than conventional cast wheels

Far greater corrosion resistance compared to magnesium wheels, without increased mass.

Wheels come with all necessary bearings and hub spacers and valves

Specific details and features of the TYGA PVM wheels designed for MC28, NC30, NC35 application.

For the RVF400, VFR400 and MC28 NSR250: Please see set TWHL-0012

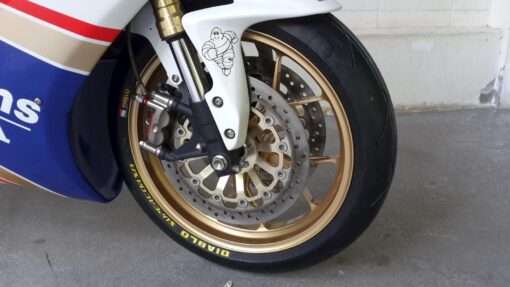

Fitment: They are a direct fitment for the models listed. The rears are specifically designed by us here at TYGA to fit the Honda street bike hubs without the need to modify or change the rear brake rotor mounting bolts and the fronts have the correct bearing spacing for Honda street bikes of that period, so no time wasted by the user adapting them to fit. Simply use together with the OEM wheel spacers.

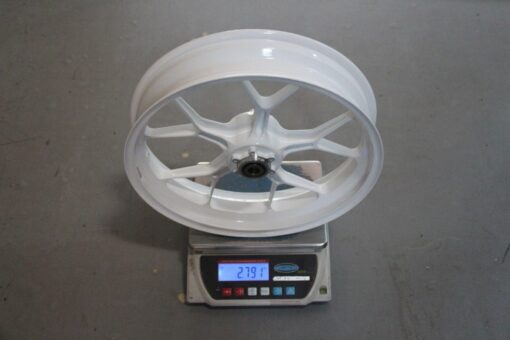

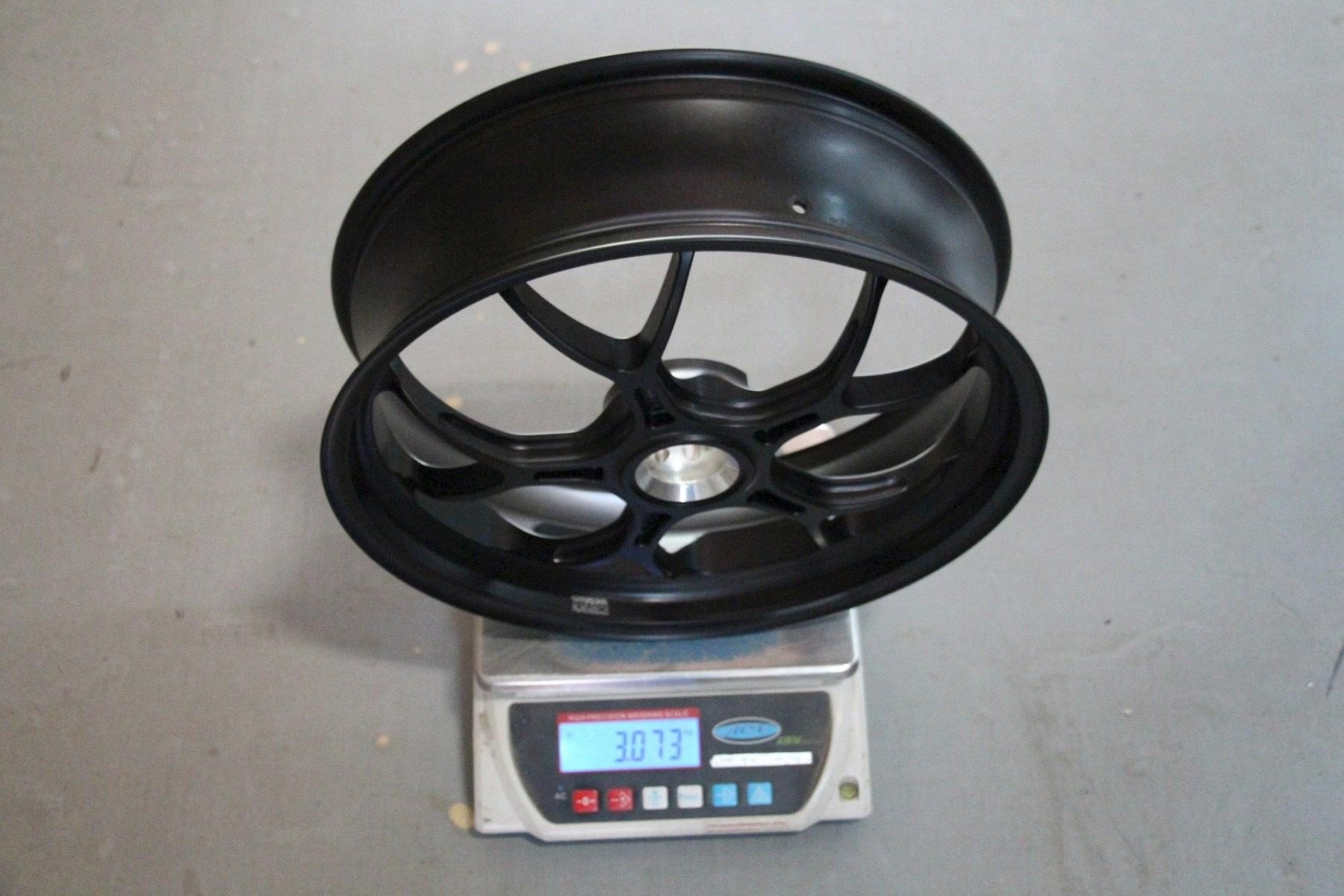

Weight: Weight. These wheels are super light and suitable for racing. The front 3.50 weighs: 2.738 kg, the 5.00 rear weighs: 3.073 KG and the 5.50 weighs: 3.228 kg

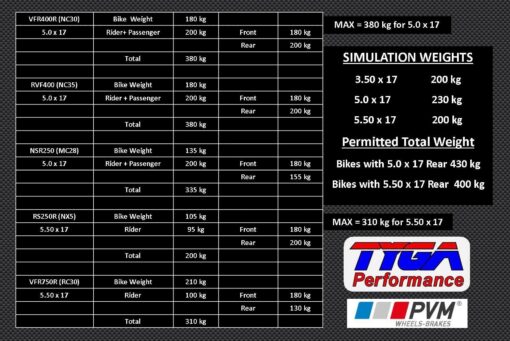

Strength: These wheels are made from forged aluminium so super strong but much lighter than cast aluminium wheels They are stronger and less prone to corrosion and cracking than magnesium. See load chart below for details of maximum weights.

Peace of mind: They are brand new compared to most lightweight wheels available for these models which are mostly around 20 years old and therefore past their safe use date

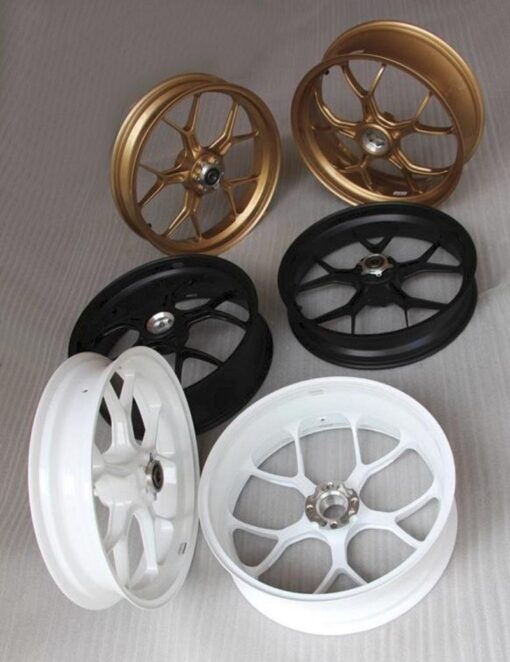

Style: They look stylish and modern with the Y spoke design and the tough and elegant finish in gold, white and satin black give the perfect finishing touch to your motorcycle’s appearance.

Torque specs

Front Axle Nut: 60 Nm (43 ft-lb)

Rear Wheel Nut: 120 Nm (87 ft-lb)
