CDI Zeeltronic Mito MK1

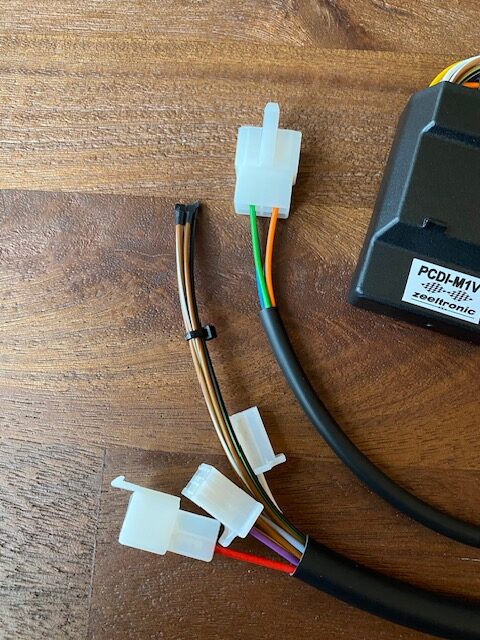

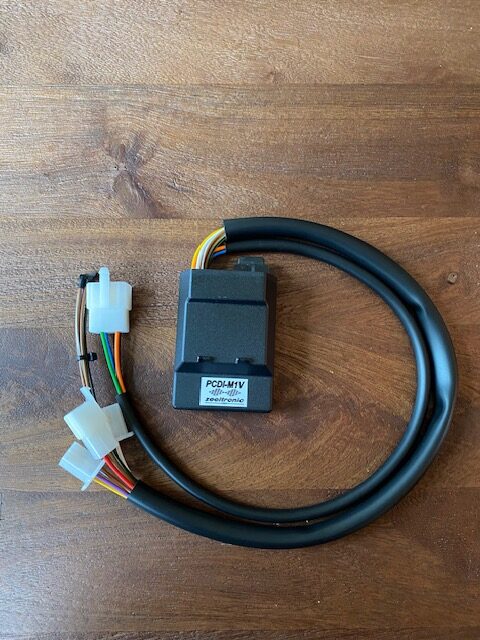

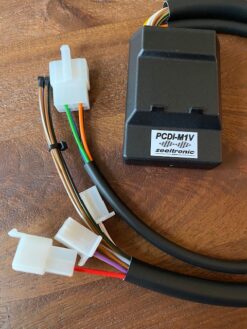

The Zeeltronic PCDI-M1V  unit has no restrictions and quickly and easily replaces the standard CDI unit for instant power.

The standard “as delivered” map works good for 90% of the situations, but its a programmable CDI. This means with the PC programmable cable you can adjust many options (optional, product alg-10430)

For more details check the zeeltronic website here:

Supported bikes:
Cagiva: Mito EV 1990-2005 with Kokusan “standard” rotor/stator
– available with connectors, as plug&play
Husqvarna: SM125 97-05
– available with connectors, as plug&play

Technical data:
– minimum revs 200 RPM
– maximum revs 20000 RPM
– minimum supply voltage 8 Volts
– maximum supply voltage 16 Volts
– max. supply voltage for 1 minute 35 Volts
– current draw 25 mAmp
– maximum continuous current for shift light output 1 Amp
– peak current for shift light output 5 Amp

Circuit is protected against reverse supply voltage (wrong connection).

Features:
– CDI charged from hi voltage charging coils (generator)
– running from stator without pickups
– store and load function for 2 ignition maps
– map switch for changing ignition map while riding
– shift light output
– quick shift (shift kill)
– tachometer output
– advance/retard whole ignition curve
– soft rev limit (retard timing, reduced spark, spark off)
– timing compensation curve
– signal delay compensation
– timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, …)
– programmable power valve actuation
– store and load function for 5 PV curves
– programmable PV deviation
– programmable max close and max open positions
– self PV test on power-up
– PV error detecting (position sensor failure, servo motor failure)
– easy and fast programming on the field, via hand held programmer
– programming while machine running – you can immediately see effects
– monitoring of rev’s, ignition and PV angle, via LCD(hand held programmer)
– fast processing for high accuracy – delays from 1us
