Temp Gauge, Uinversal, Black light, 1/8 inch NPT

Temp Gauge, Universal, Back Light, 1/8 inch NPT Fitting.

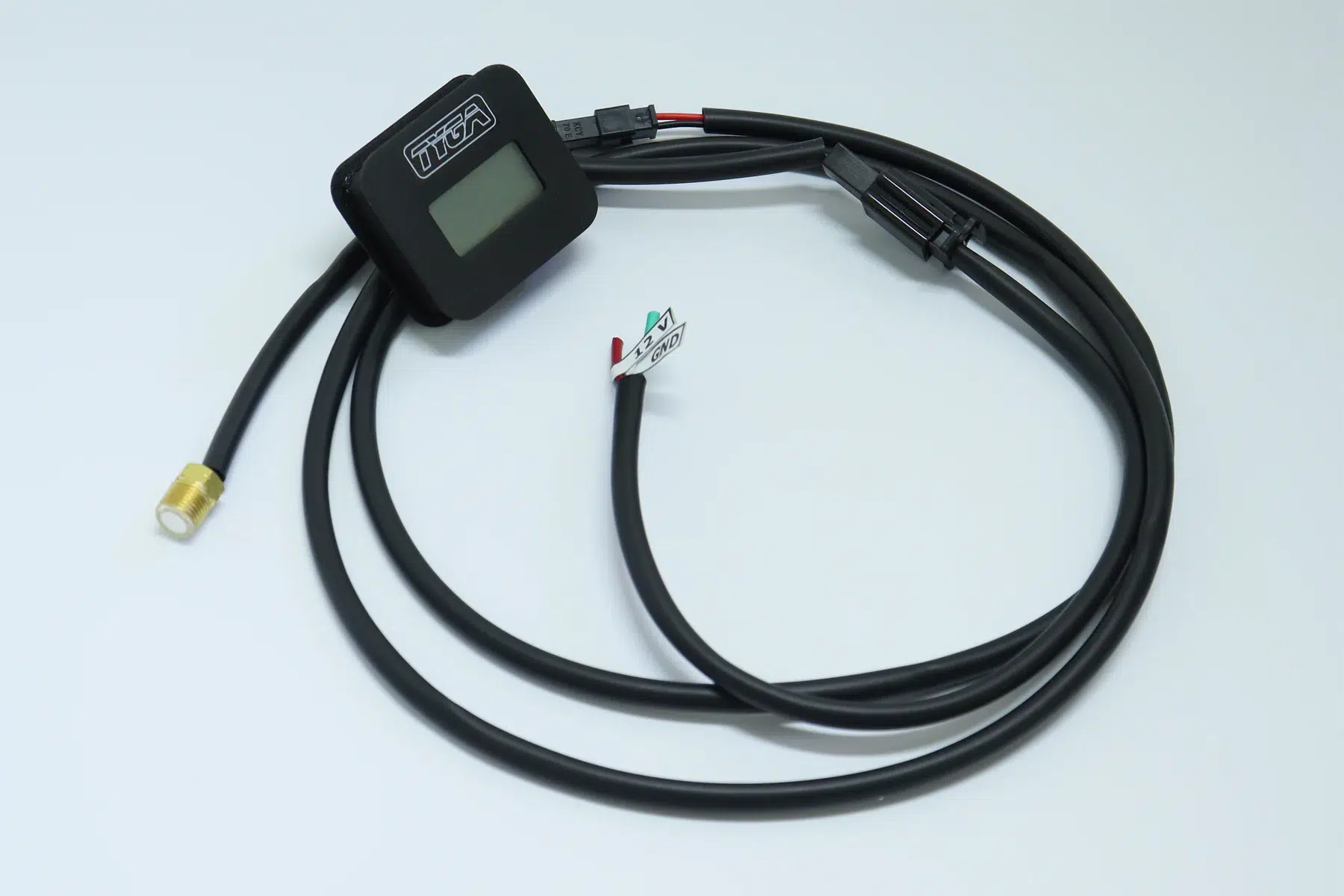

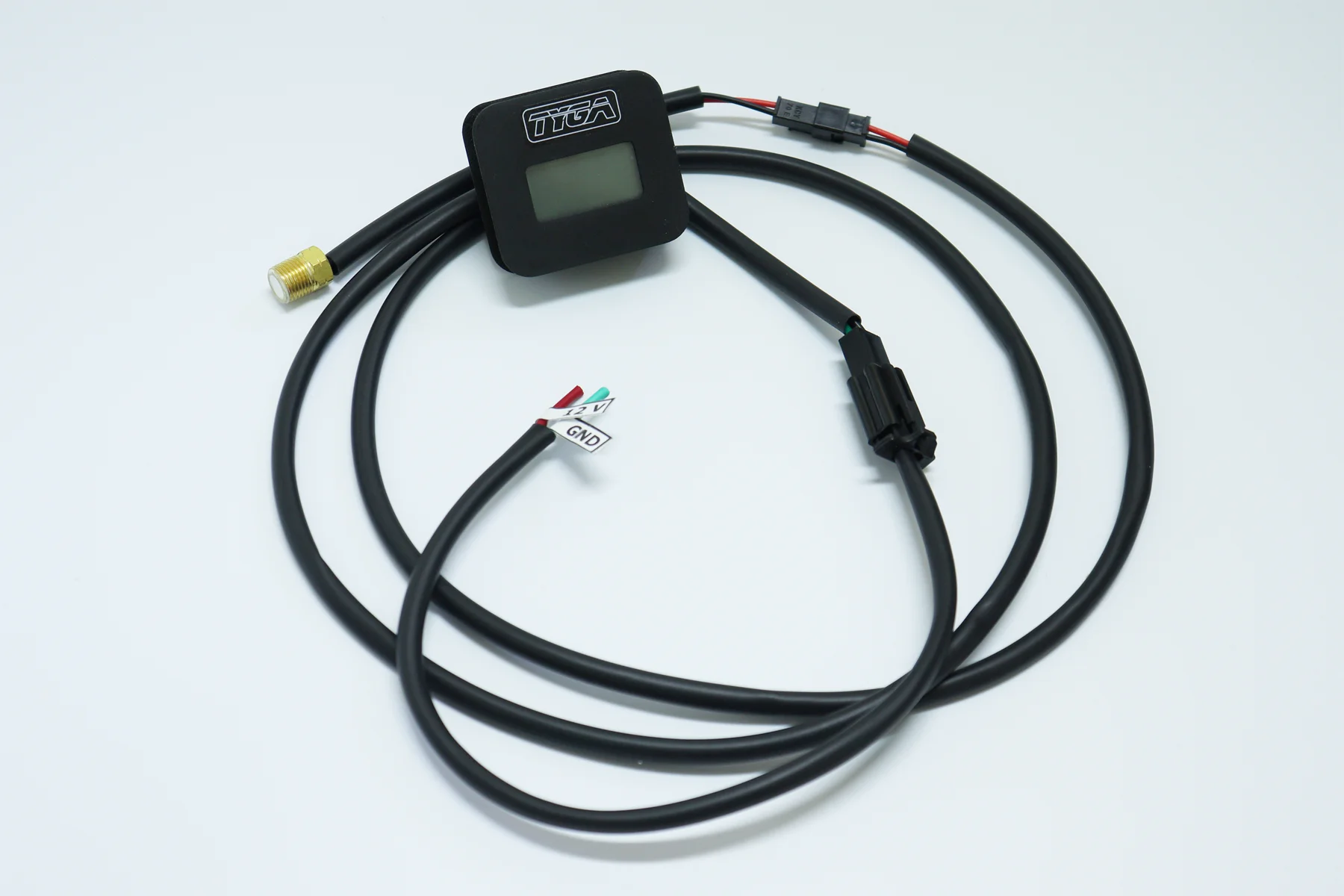

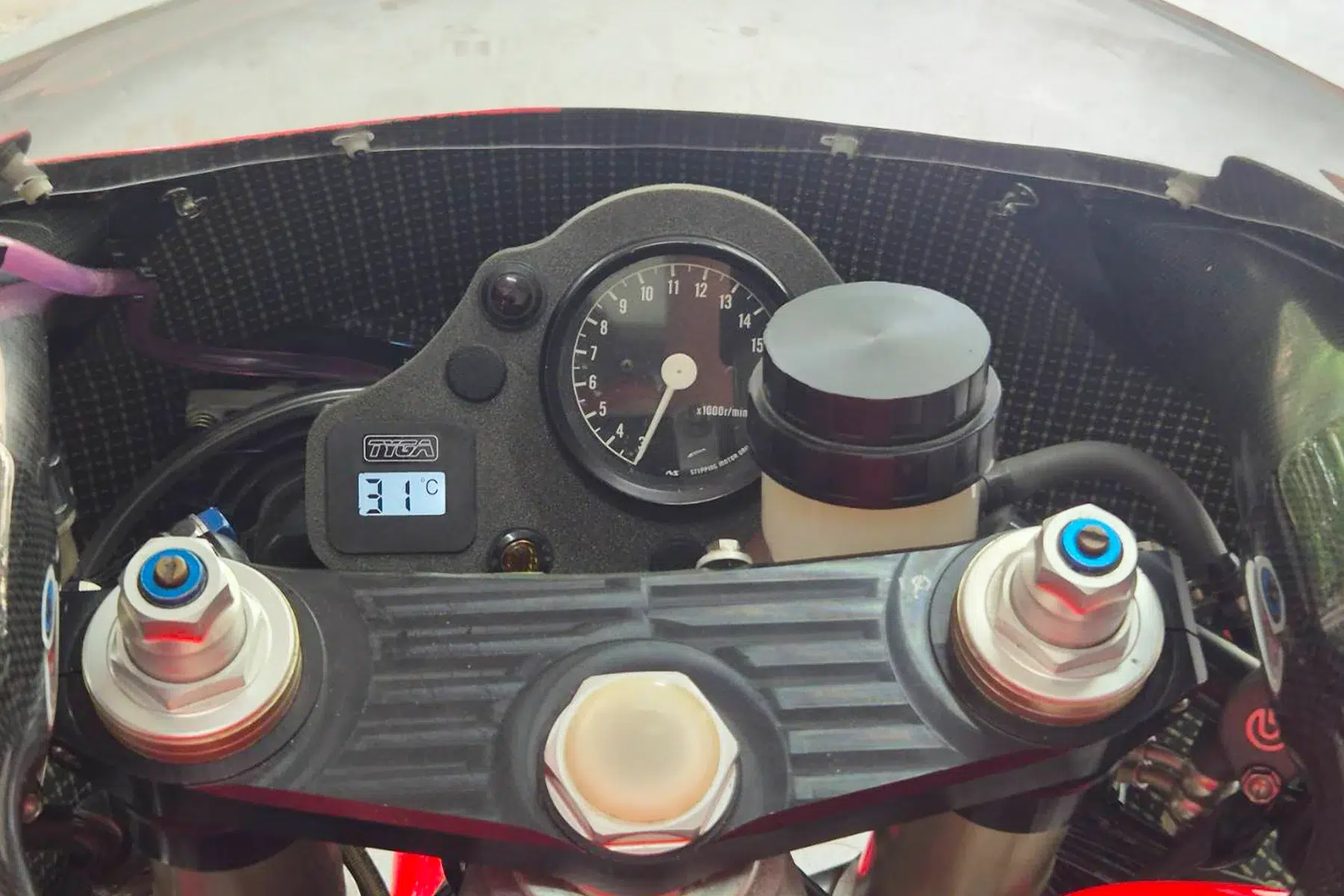

LCD temperature gauge for race use. Based on the HRC style temp gauge.

Pre-fitted with 1/8″ NPT adapter. Just remove the standard temperature sensor and screw in this replacement.

Displays temperature in Centigrade, 20°C ~ 99°C.

Below 20°C the display will show ‘LO’. Above 99°C the display will flash ‘HI’.

Handy back light function gives great readability in low light conditions.

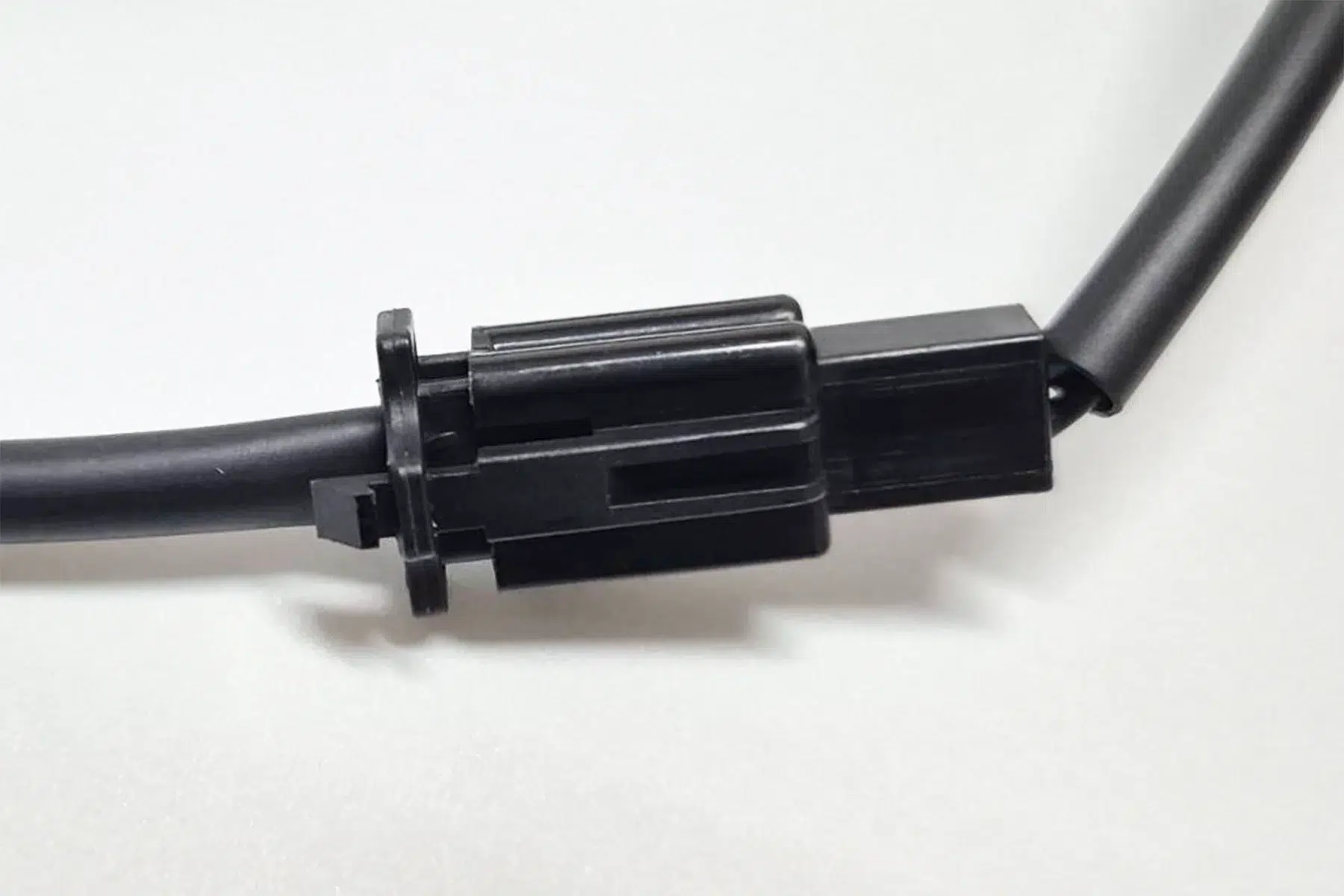

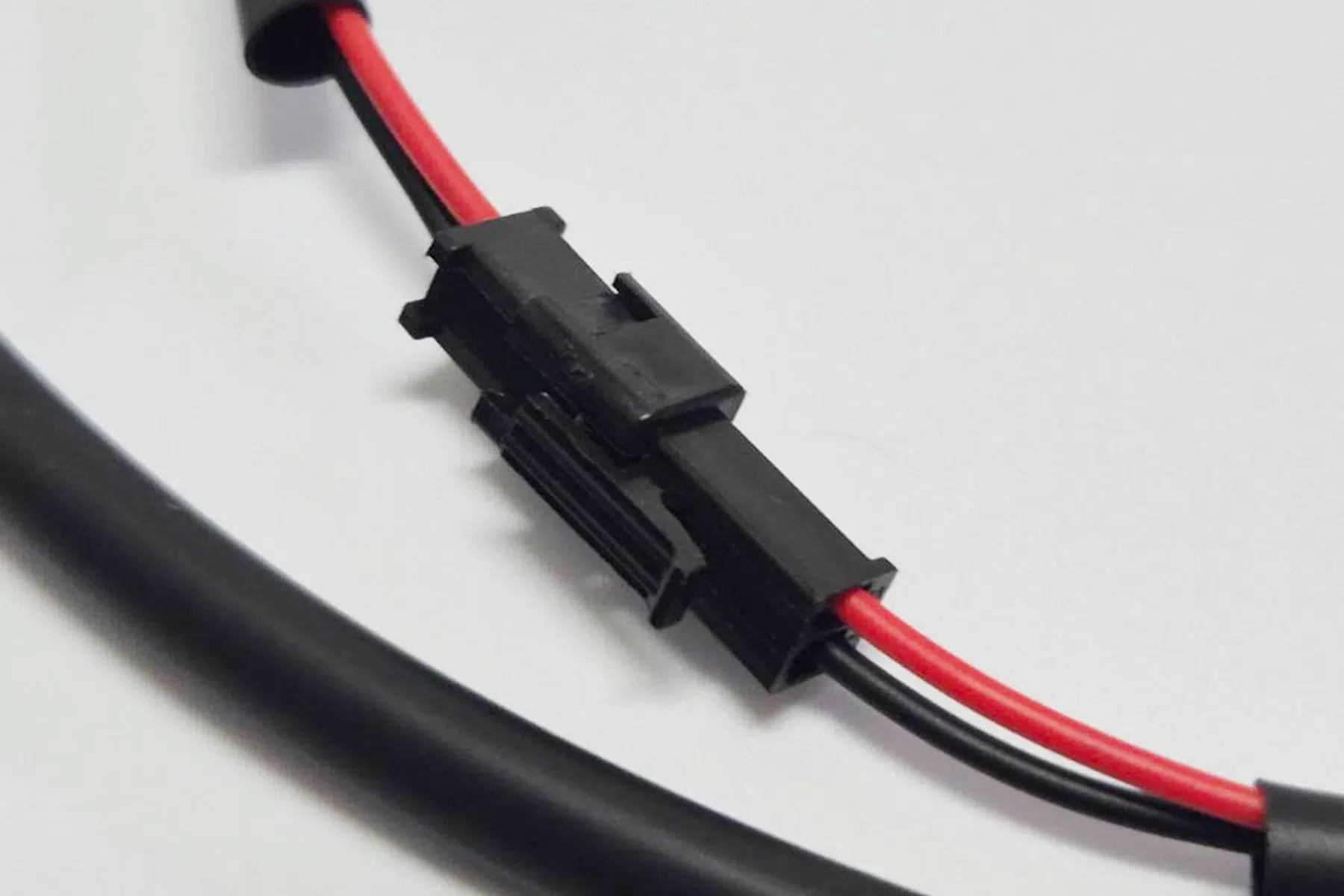

Please note that this temperature gauge is powered by a switched 12~15V from your bike. We have included a connector and wires, and it is up to the user to splice this into a switched 12~15V.

For your reference:

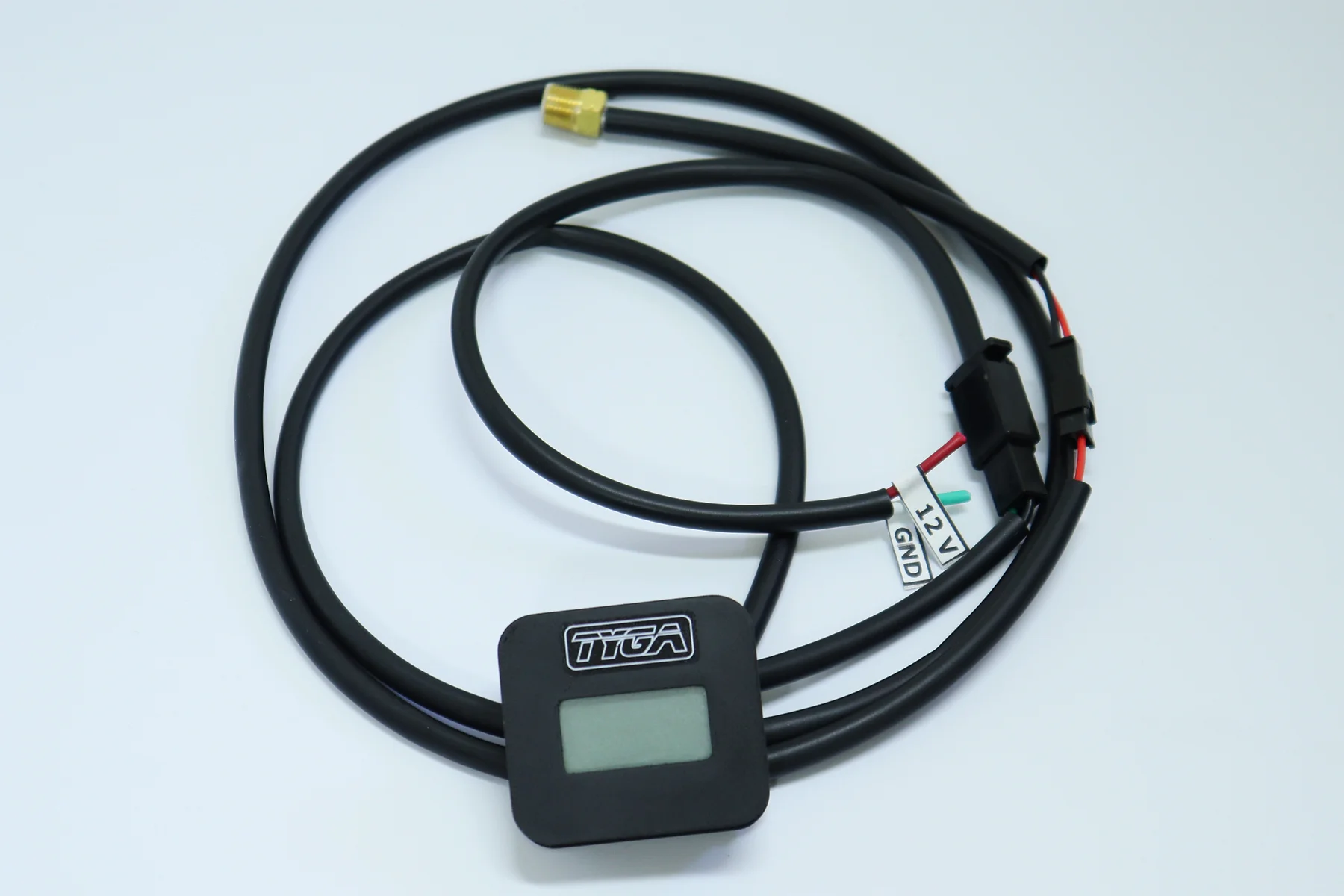

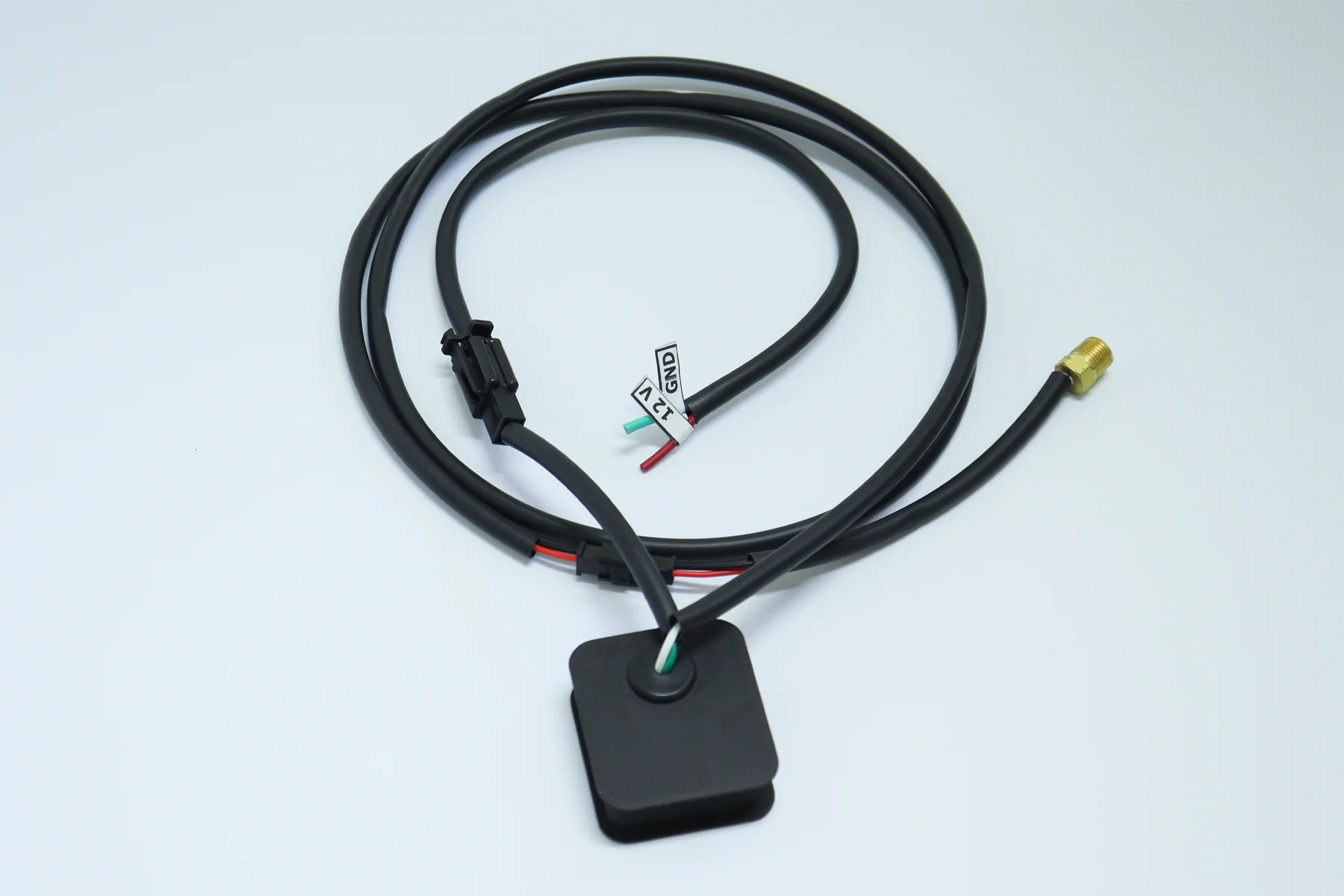

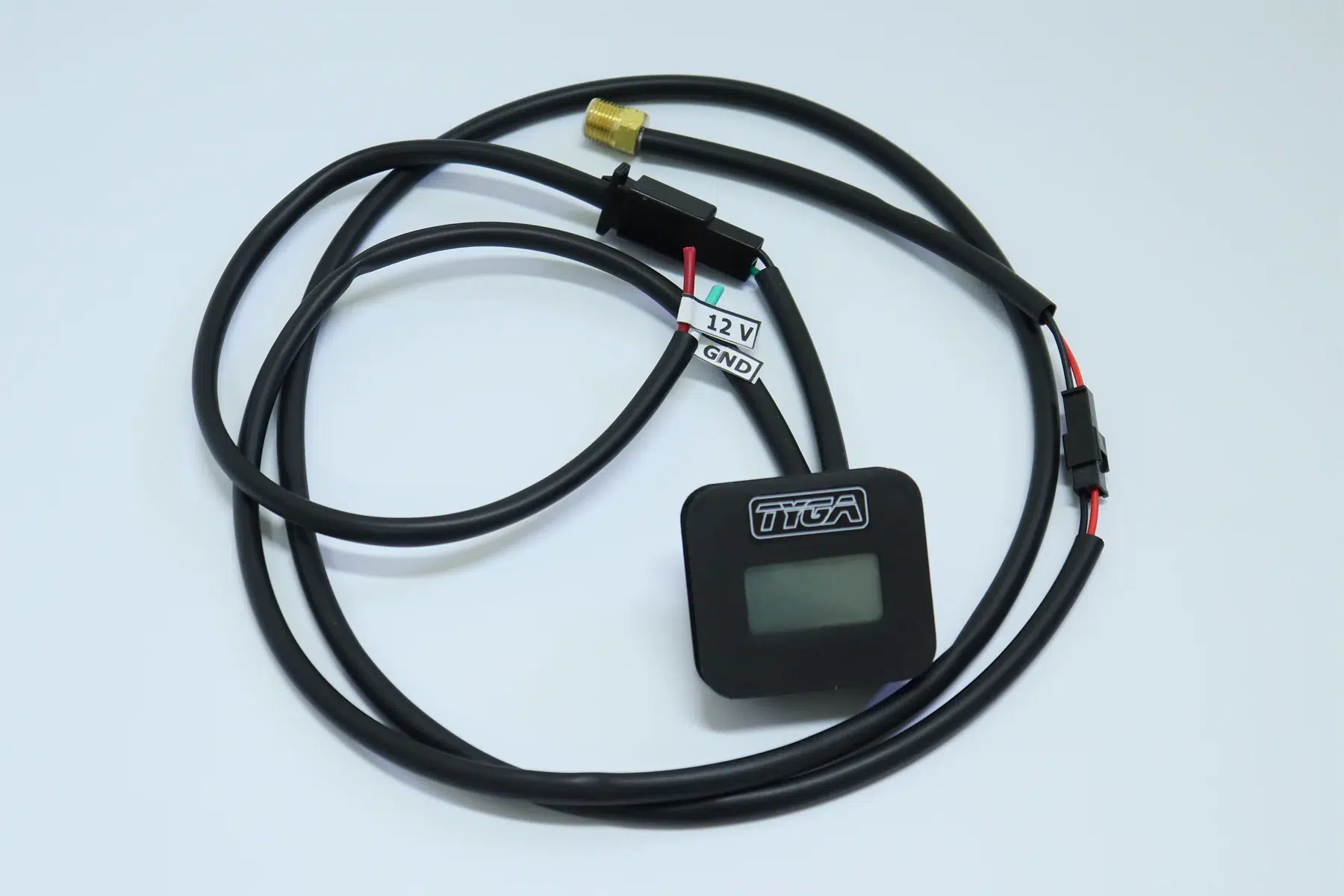

The red wire should be connected to switched 12V
The green wire should be connected to ground.

**NOTE** Some machines may use the temperature reading from the standard sensor, in which case alternative mounting may be required.

Fits:

Suzuki:
-RGV250VJ21
-RGV250VJ22
(replaces part: 34850-82012)

Aprilia:
-RS250 Mk1
-RS250 Mk2
(replaces part: AP8212708)

Honda:
-RVF400 NC35
-VFR400 NC30
-NSR250 (All models)
-NSR150SP
-CBR400RR NC29
Also fits all Honda Motorcycles that are using thermo units with OE part numbers 37750-PC1-004 and 37750-KV3-951

If your motorcycle uses an 1/8″ NPT fitting for the temperature gauge then this will work for you.
