Triple clamp set 3D silver, CBR1000RR to fit RVF400 NC35

Triple Clamp Set, 3D, CNC Silver, CBR1000RR forks to fit  RVF400 NC35

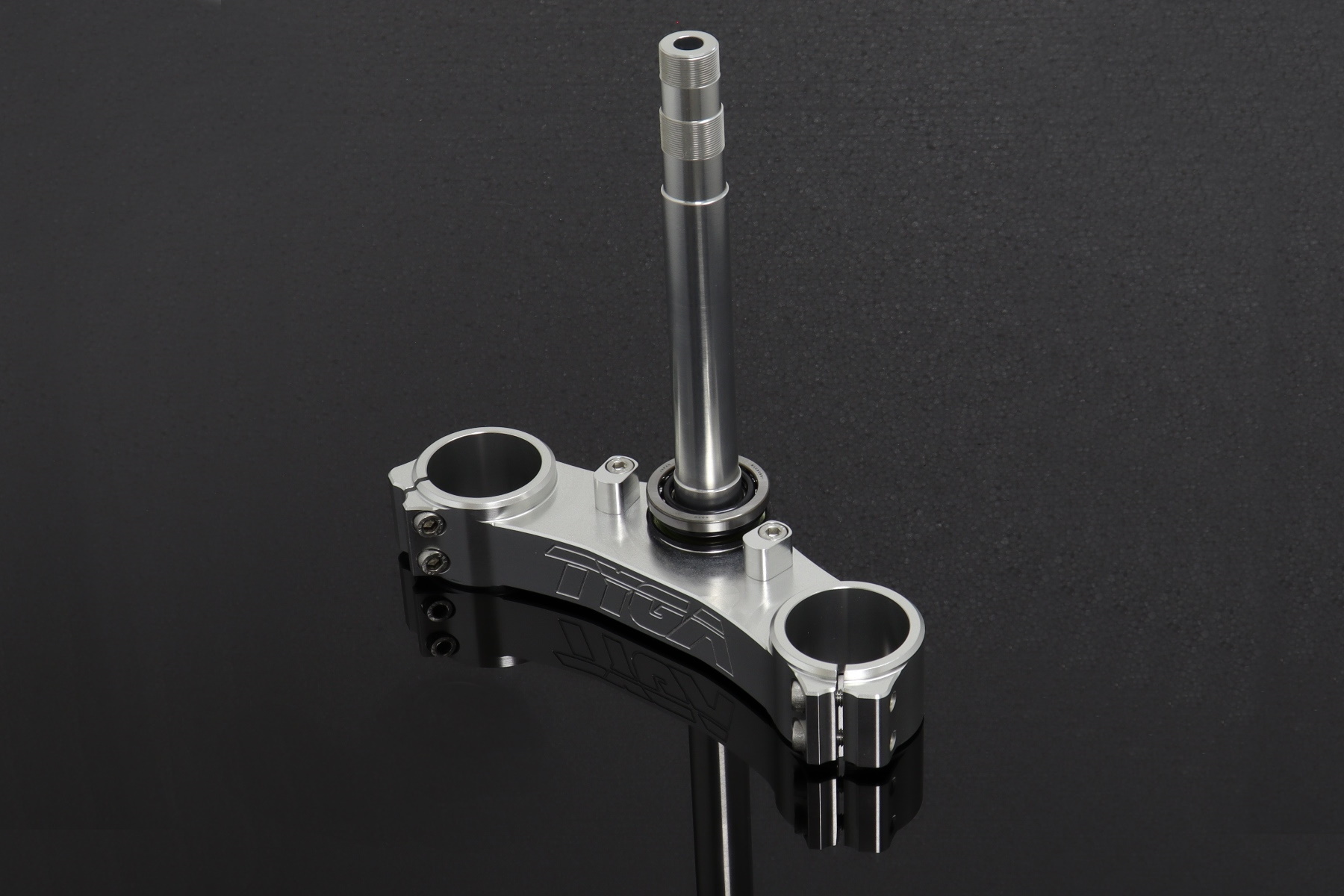

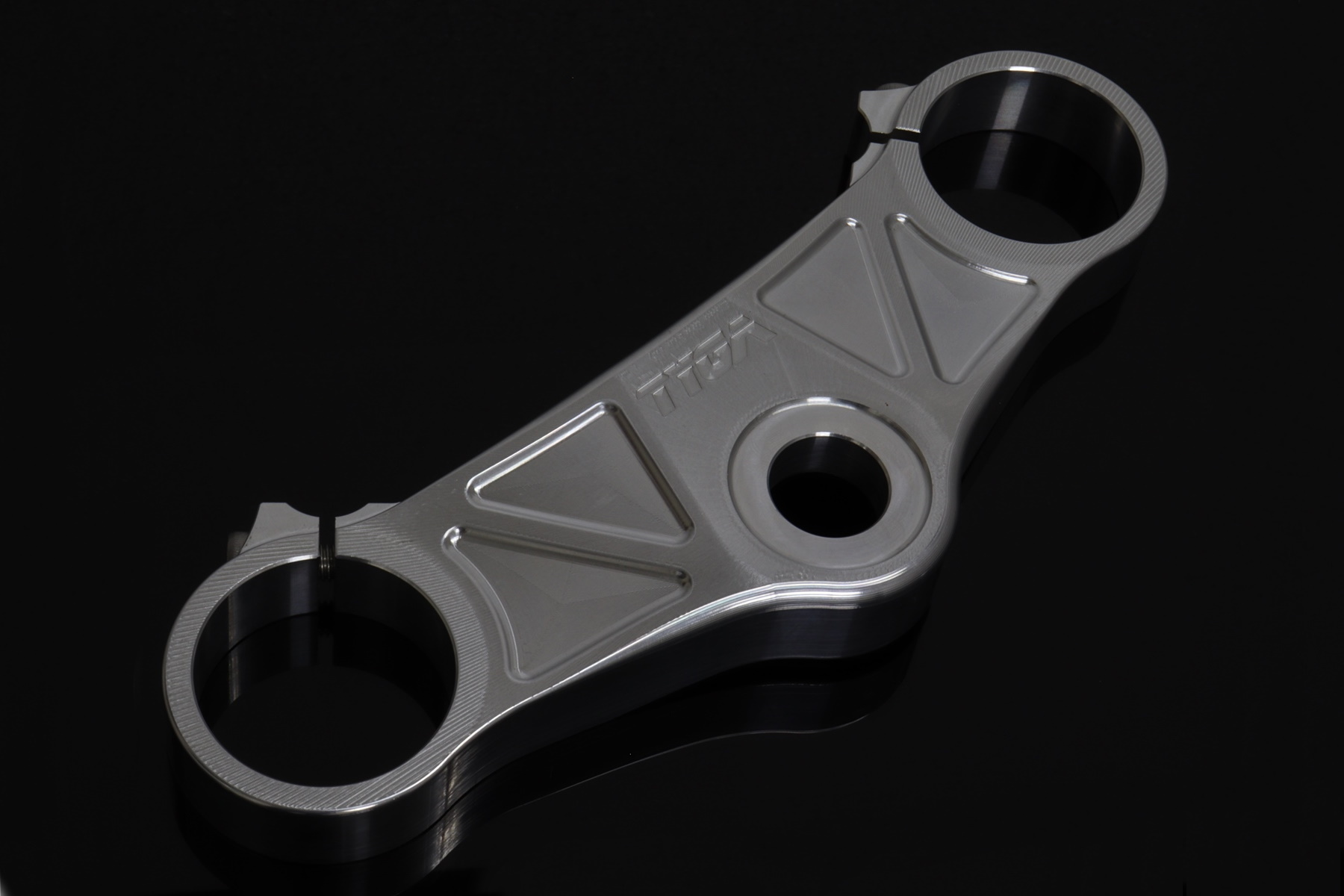

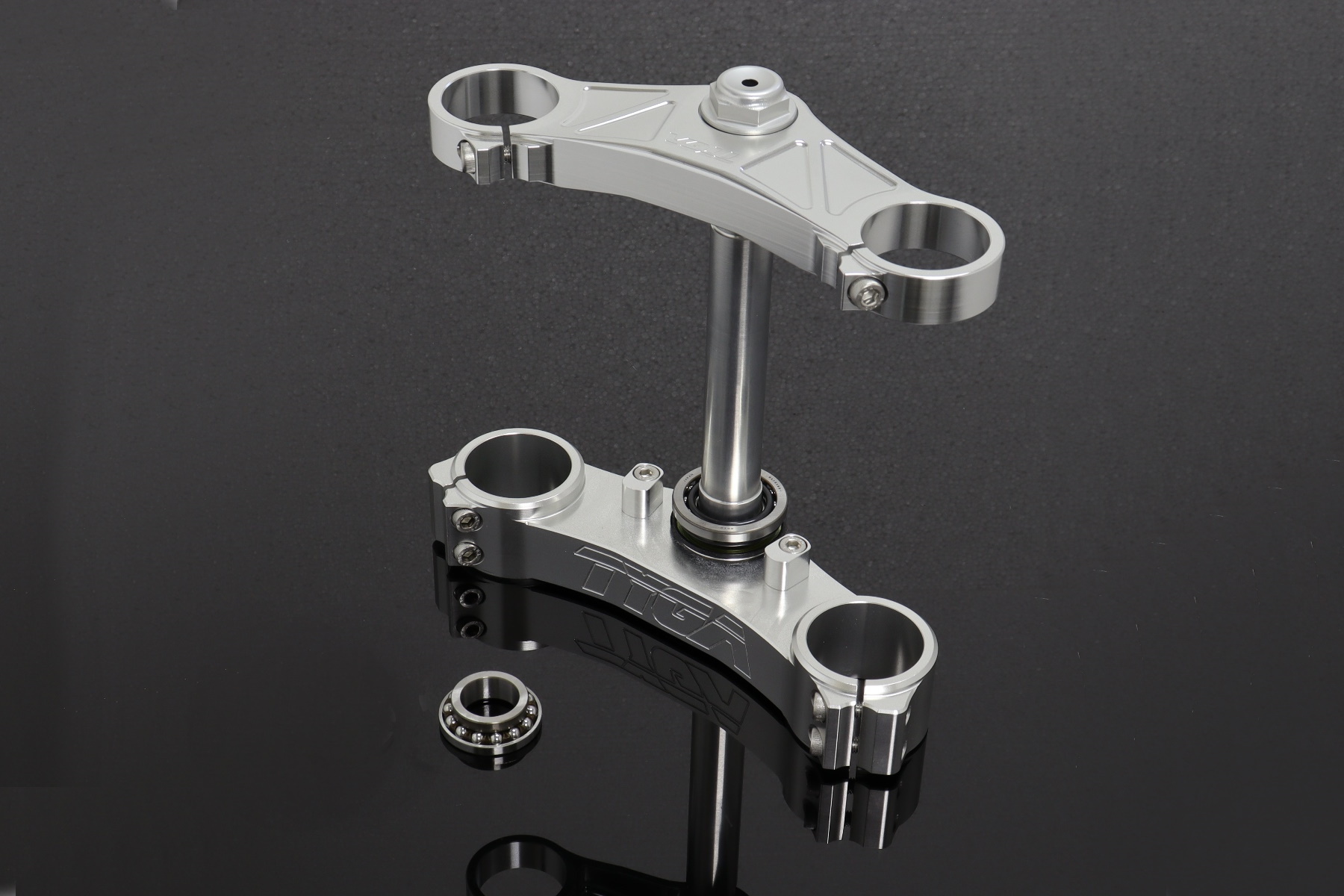

CNC machined TYGA triple clamp set for the  RVF400 NC35 to take 50mm / 54mm diameter CBR1000RR forks.

These stylish, all aluminium triple clamps are a direct replacement for the notoriously easy to bend, OEM NC35 triple clamps, and with the help of FEA testing not only do they look fantastic, but they perform!

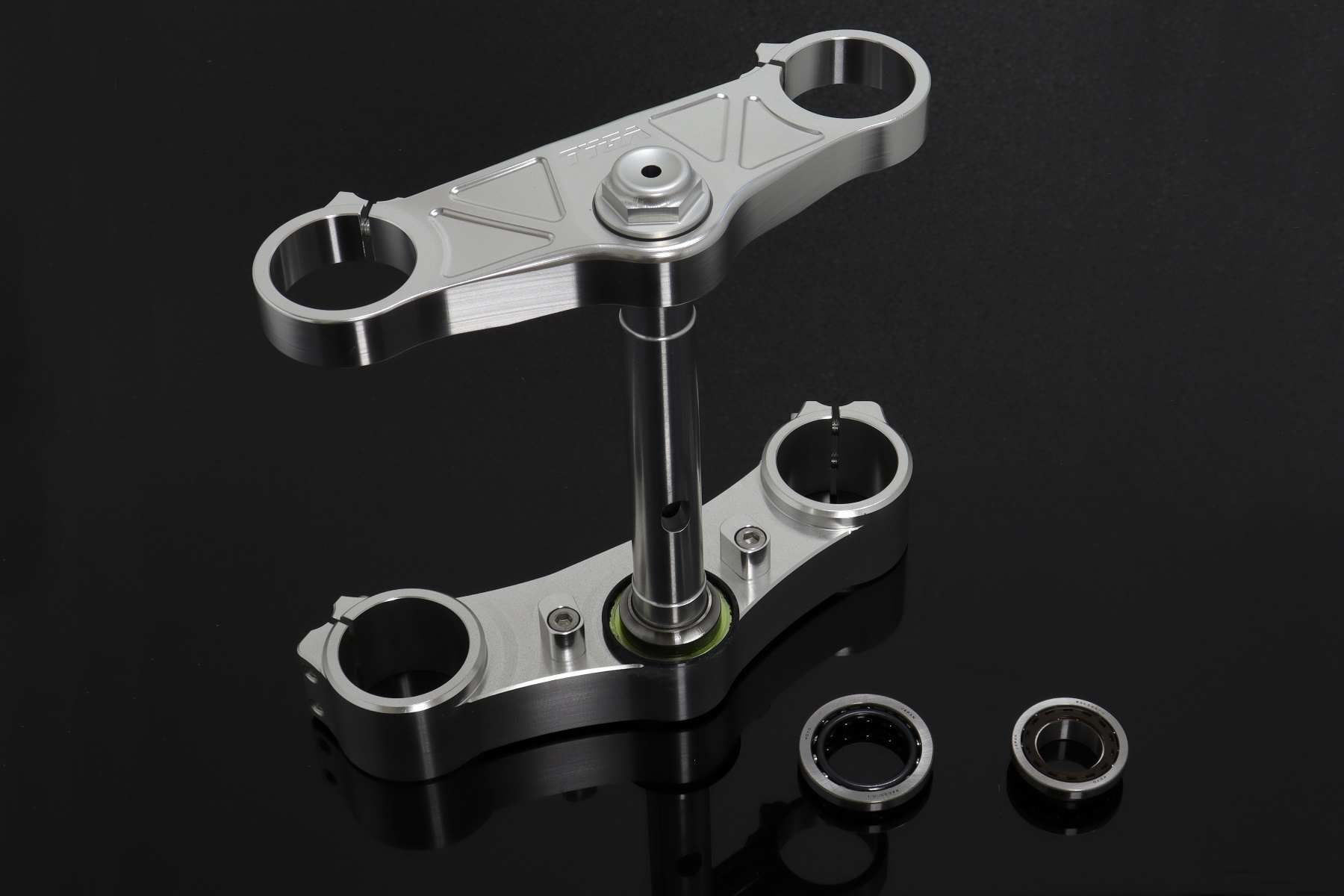

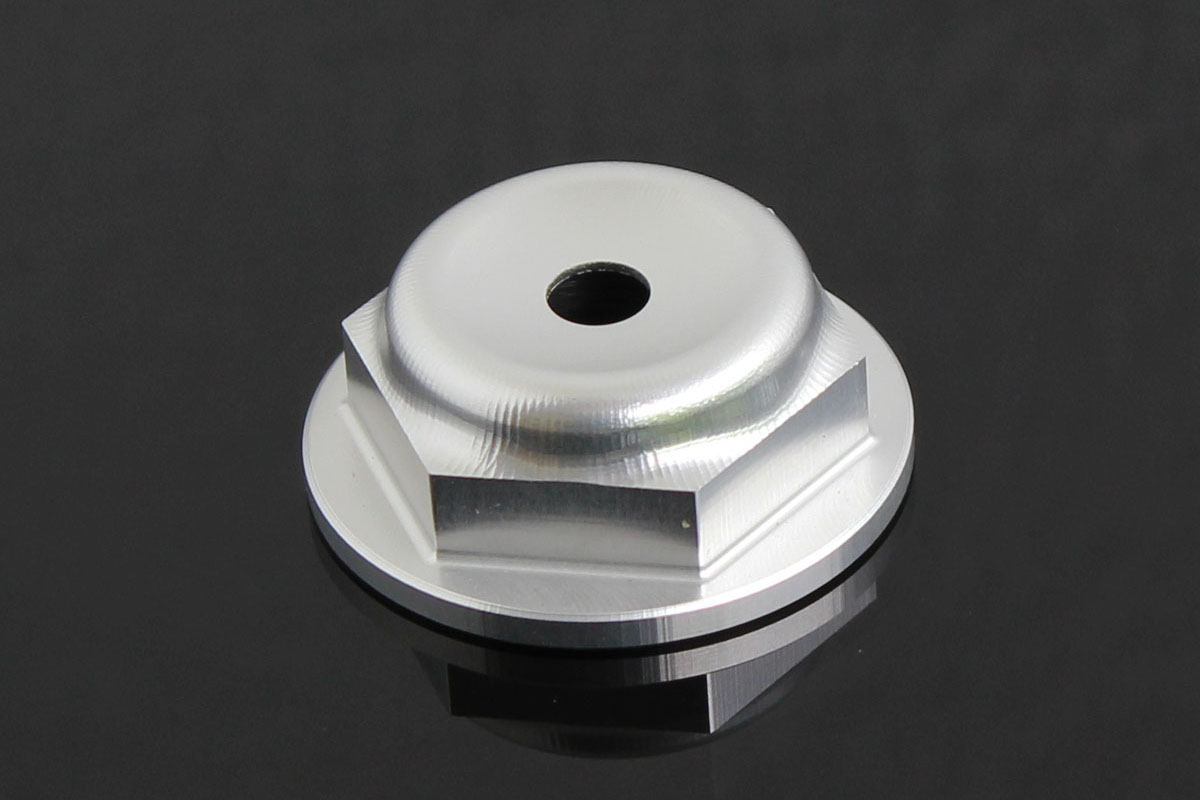

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation.

The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.

Note this is a race triple clamp set and there is no provision for ignition lock or steering lock when used on the NC35. The ignition lock has to be relocated.

Designed and CNC machined in house by TYGA from aircraft spec 6061-T6 alloy.

Tightening recommendations:

• Lower clamp pinch bolts: 23Nm.
• Top clamp pinch bolts: 23Nm.

Other products for a CBR1000RR Fork conversion

• TPER-0121: CBR1000RR 2008-13 Forks, NSR/NC Wheel, Conversion Kit
• TPER-0122: CBR1000RR 2008-13 Forks, Caliper Re-location for 310mm Discs, Conversion Kit
• TPER-0123: CBR1000RR 2008-13 Forks, Set, Disc Spacer
•  TPER-0124 : CBR1000RR 2008-13 Forks, Wheel, Caliper, Disc Conversion Kit which combines the above 3 kits
