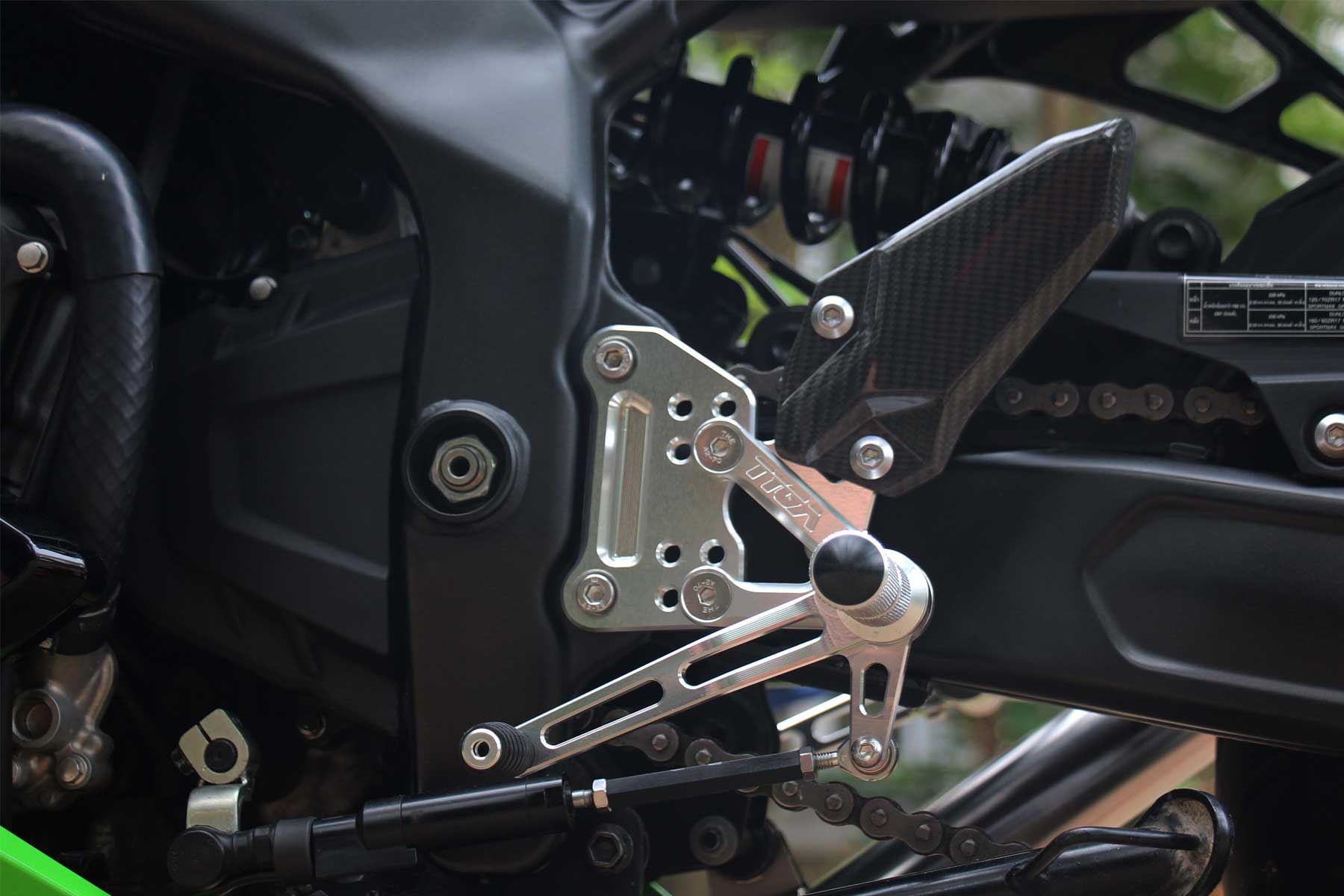

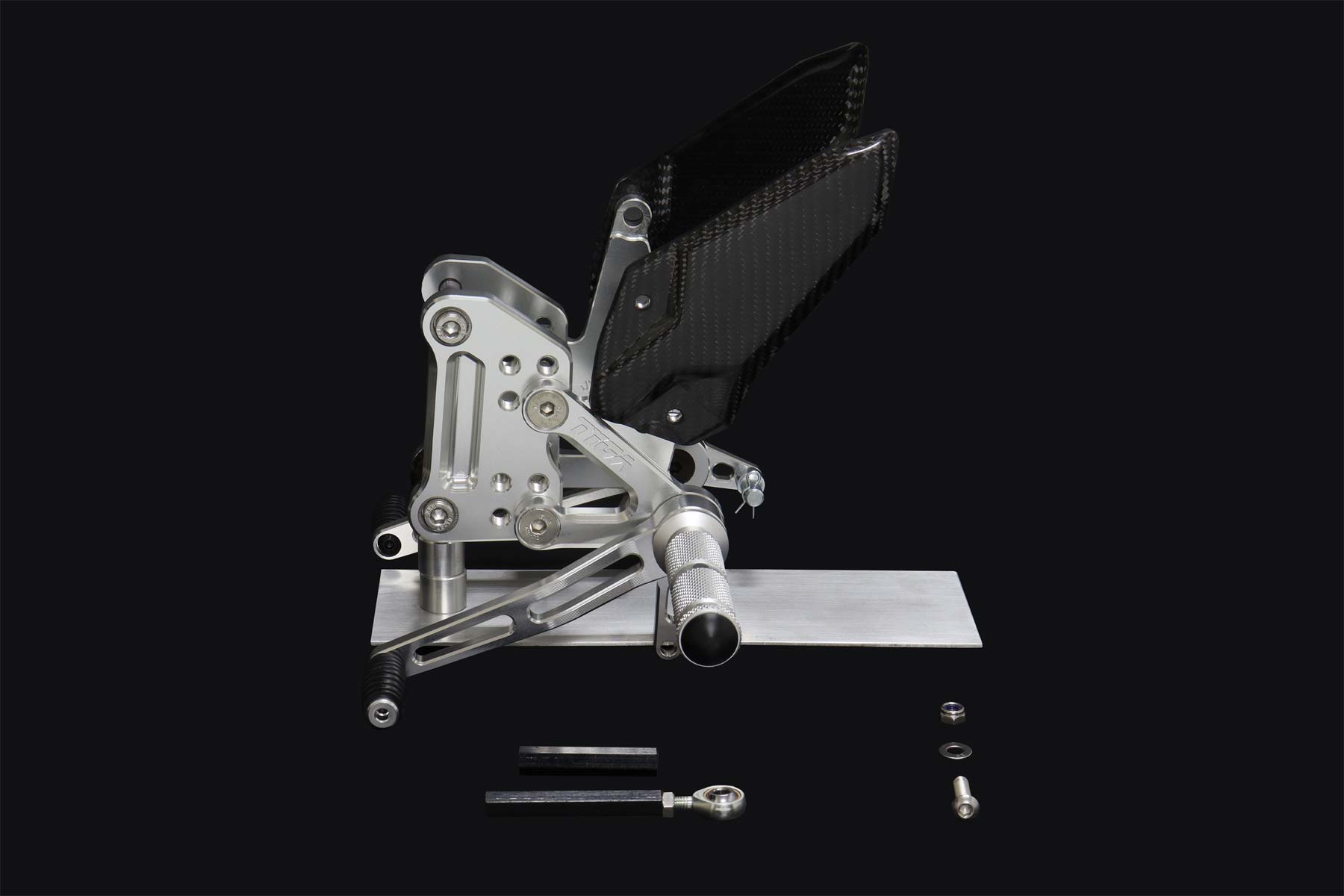

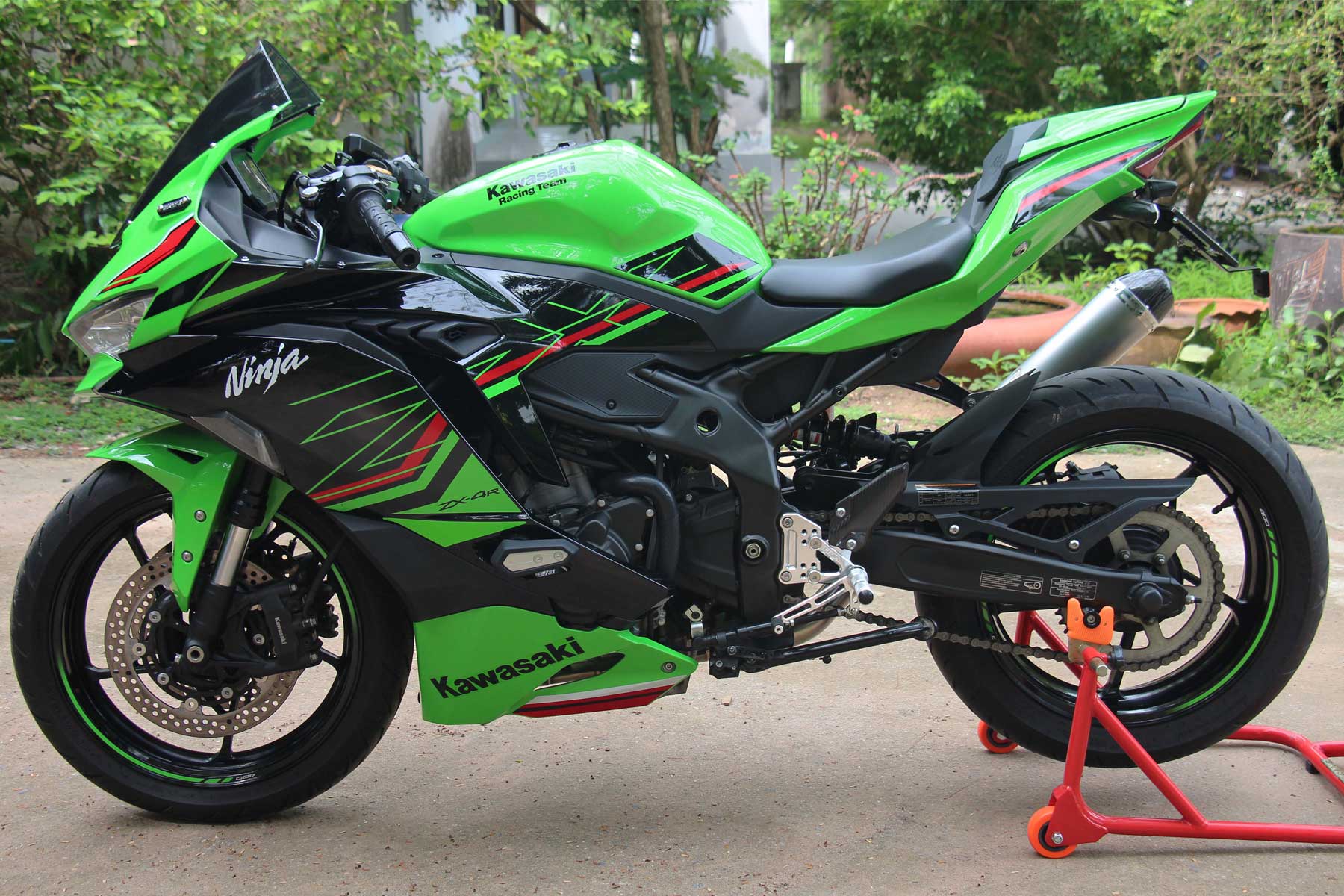

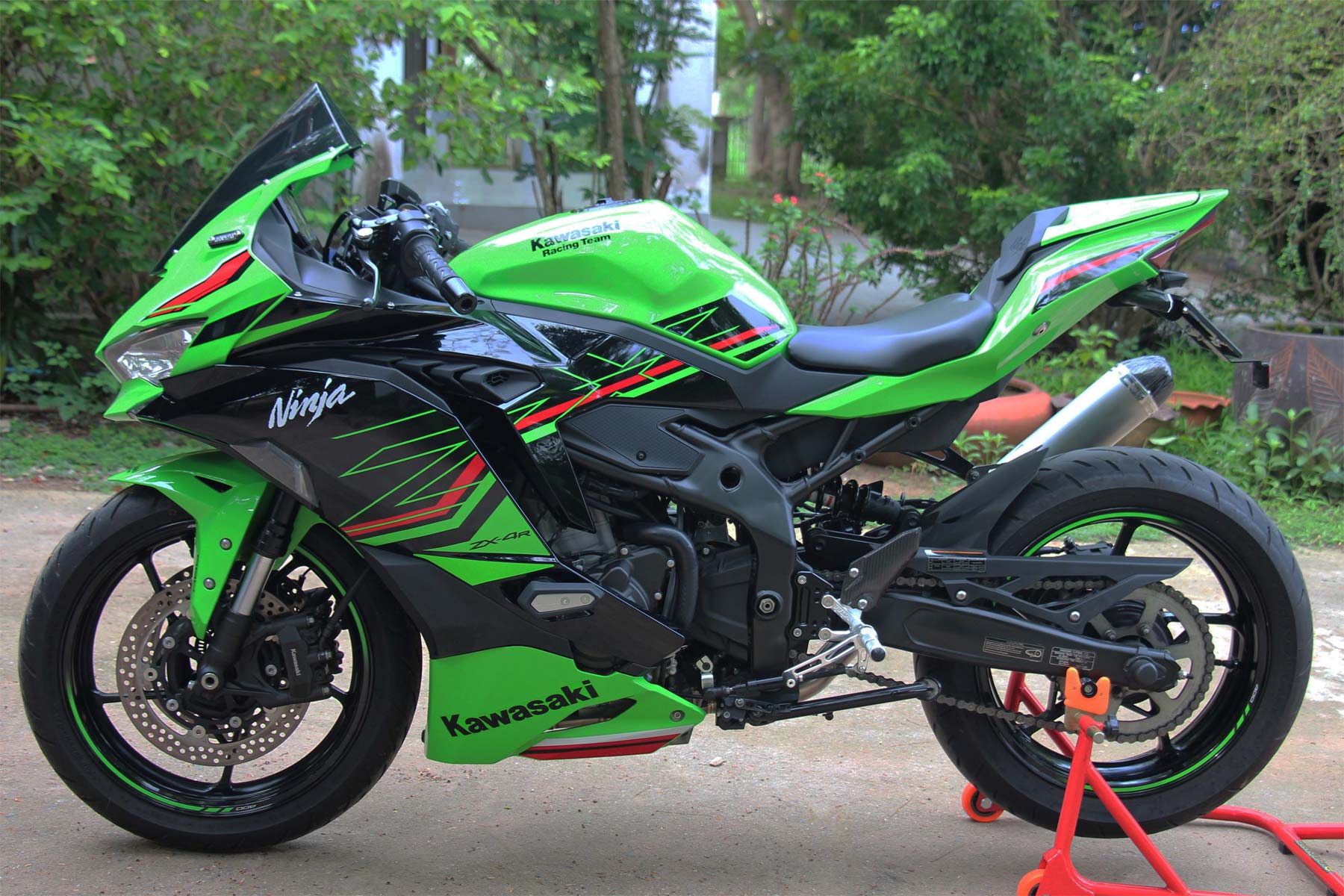

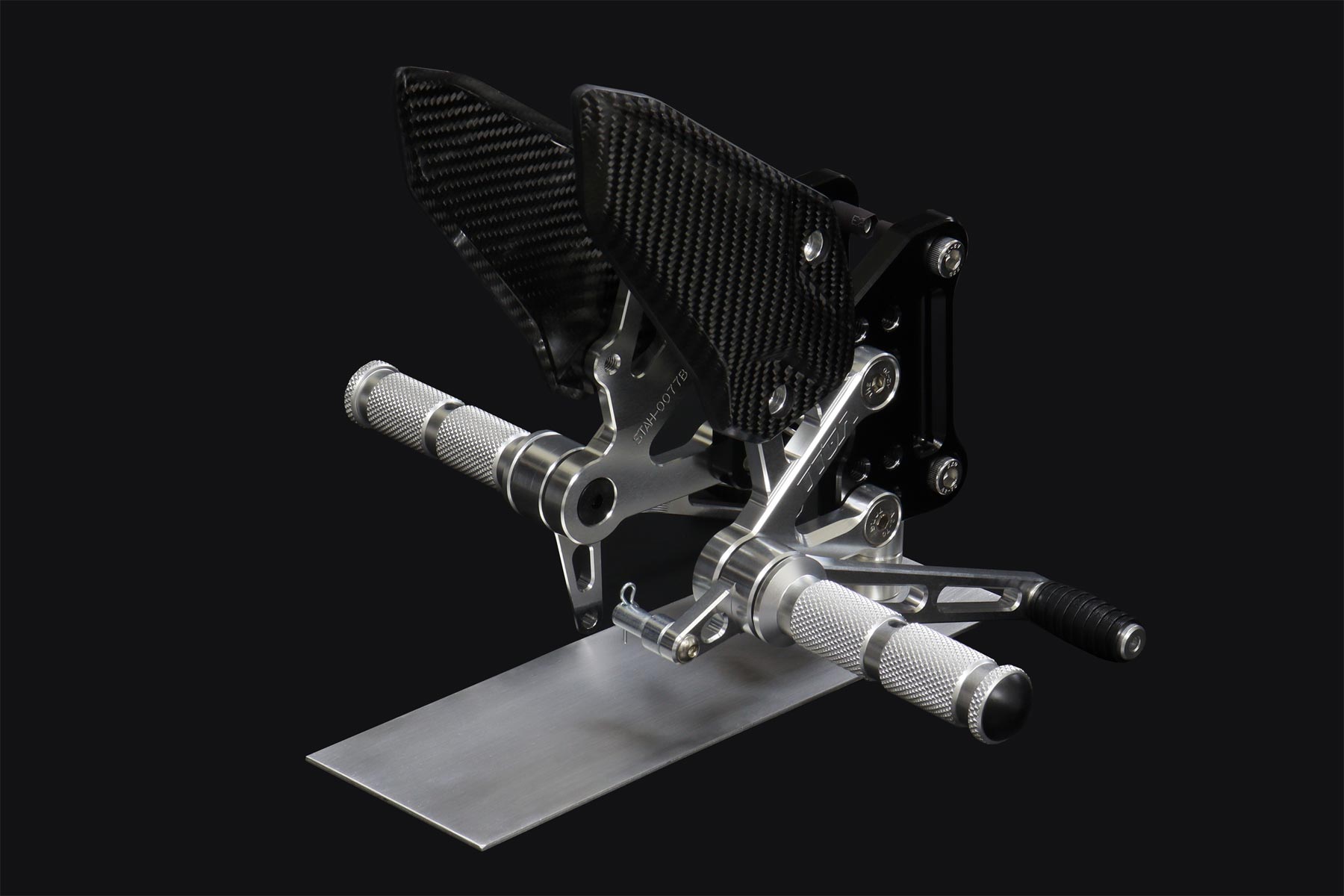

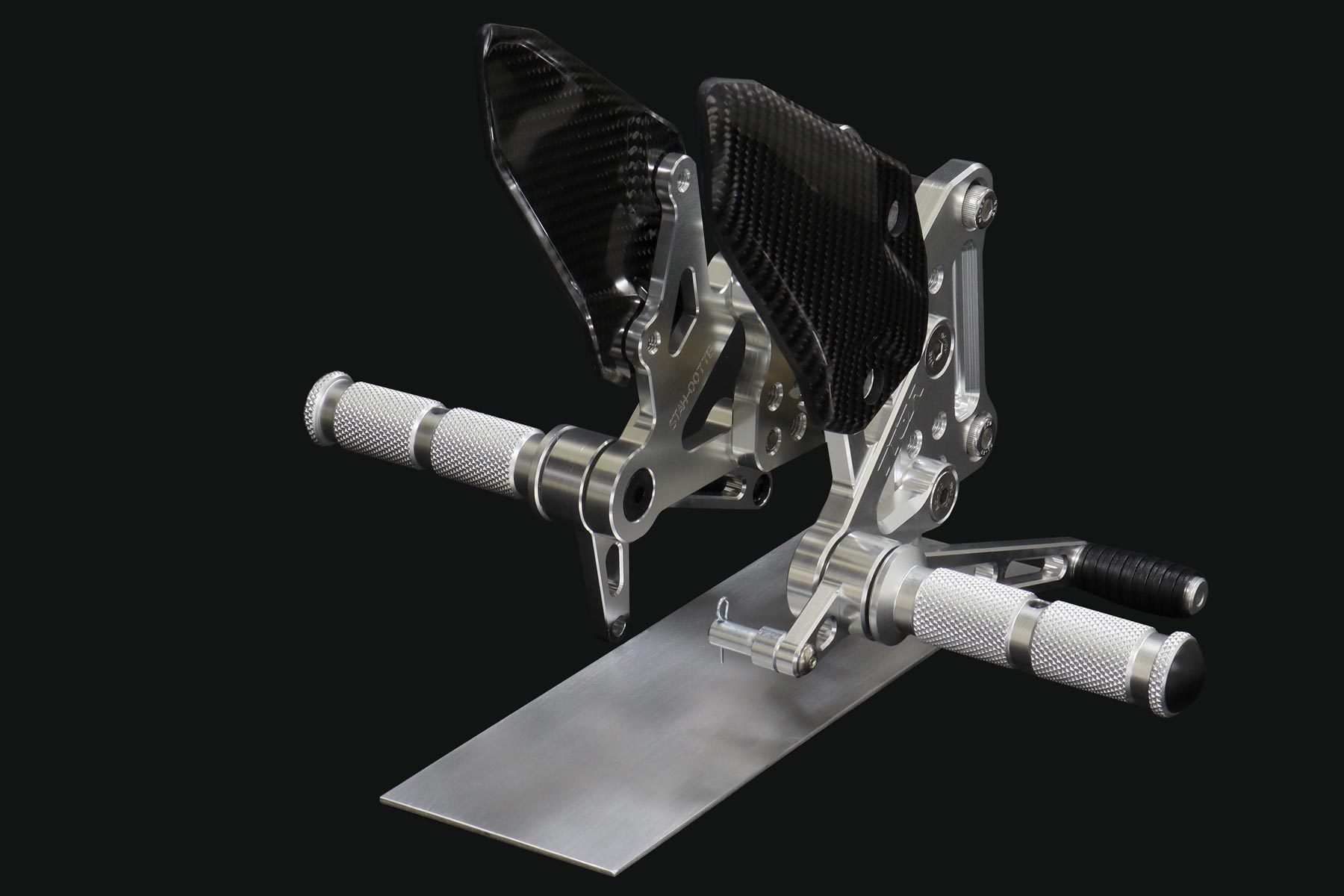

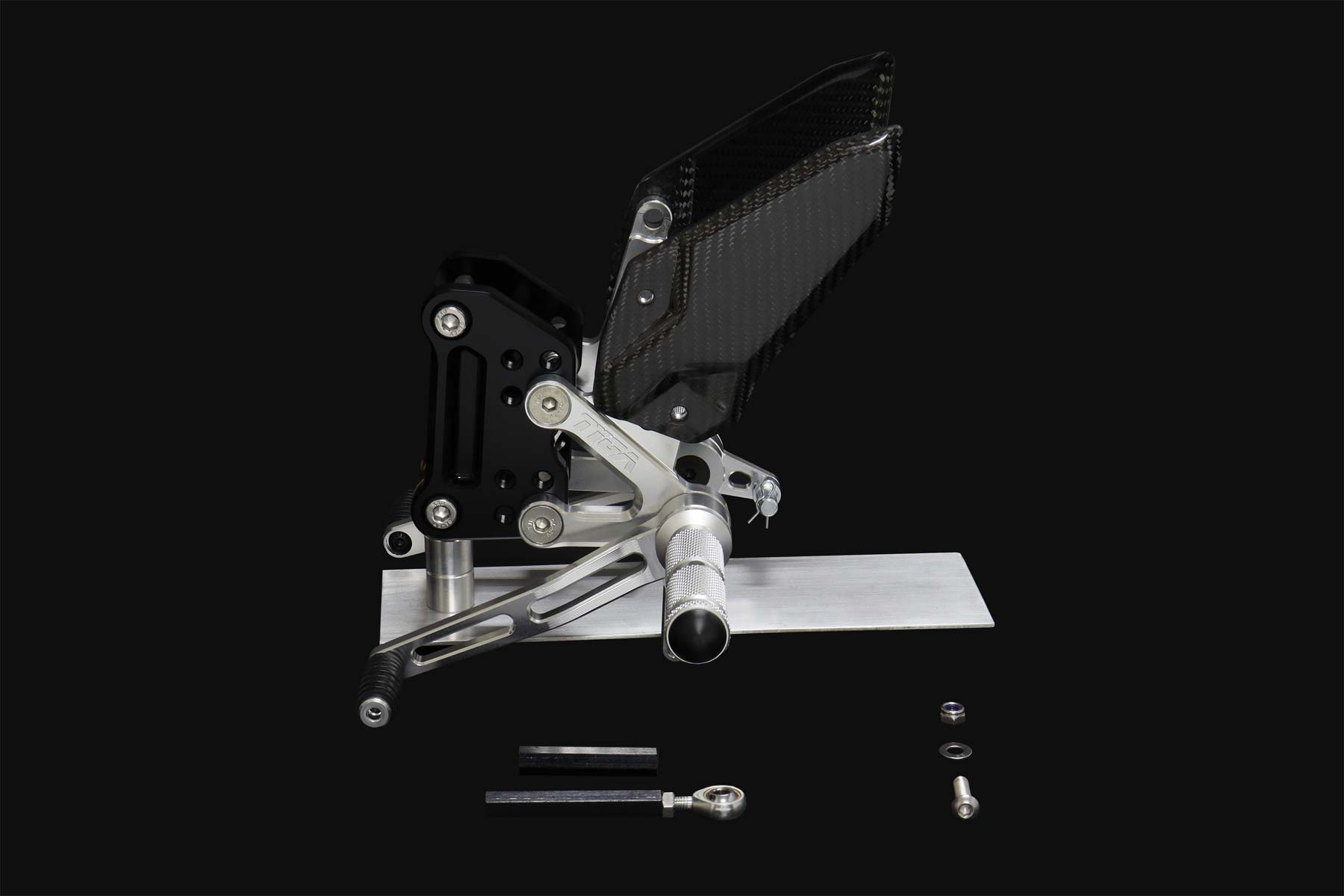

Racing Step Kit, (Adjustable), Quick Shift, Silver, Ninja ZX-4R(R)

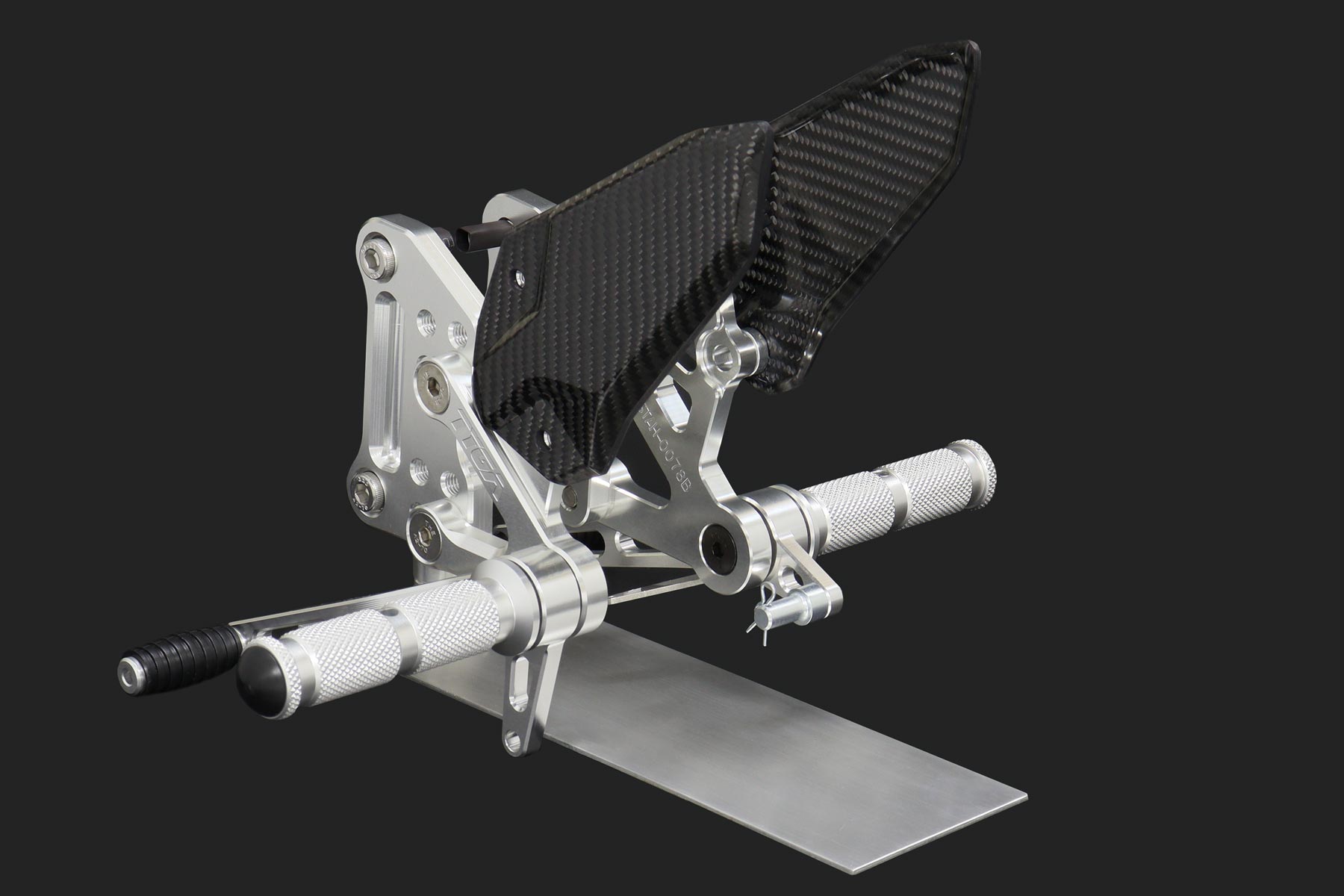

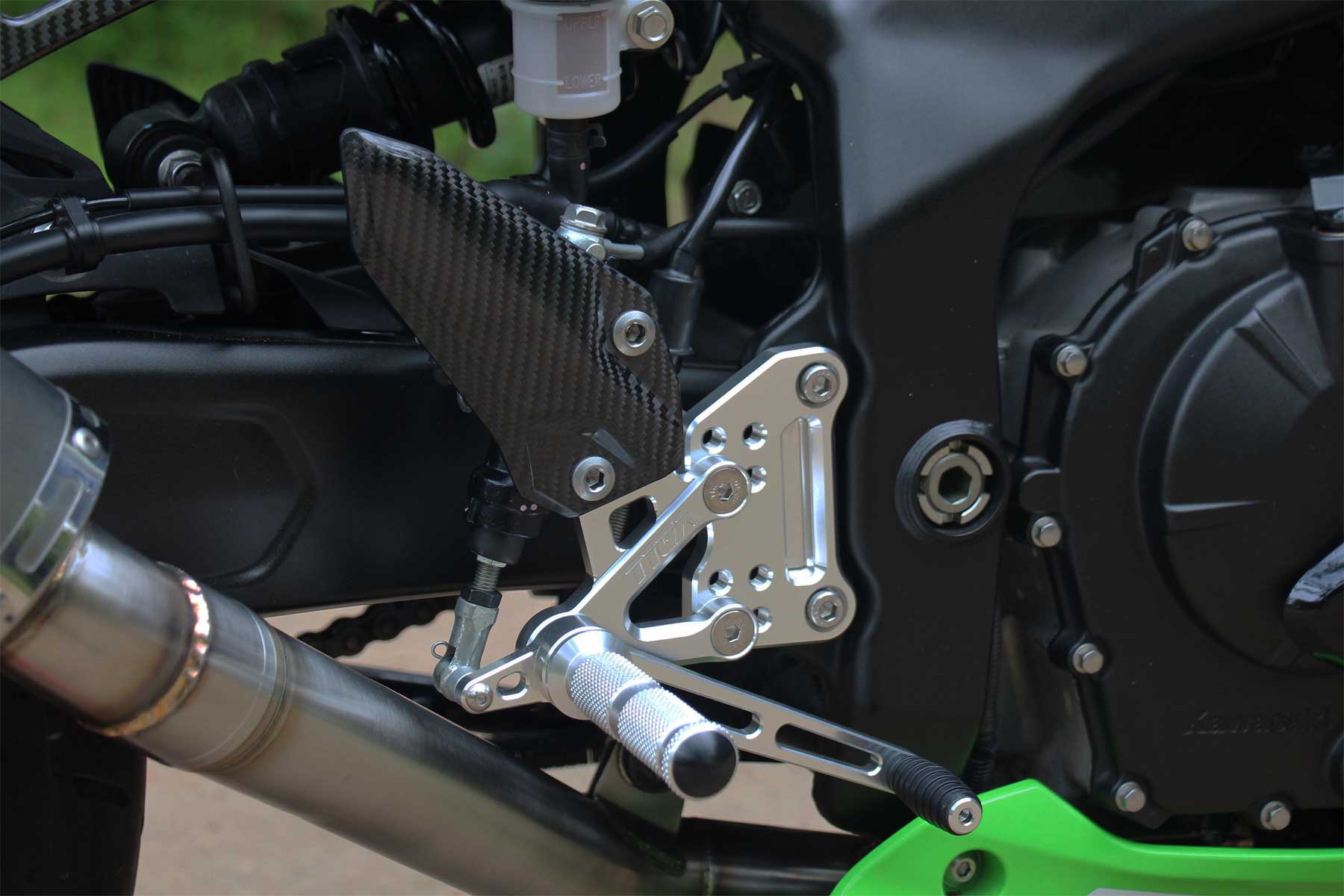

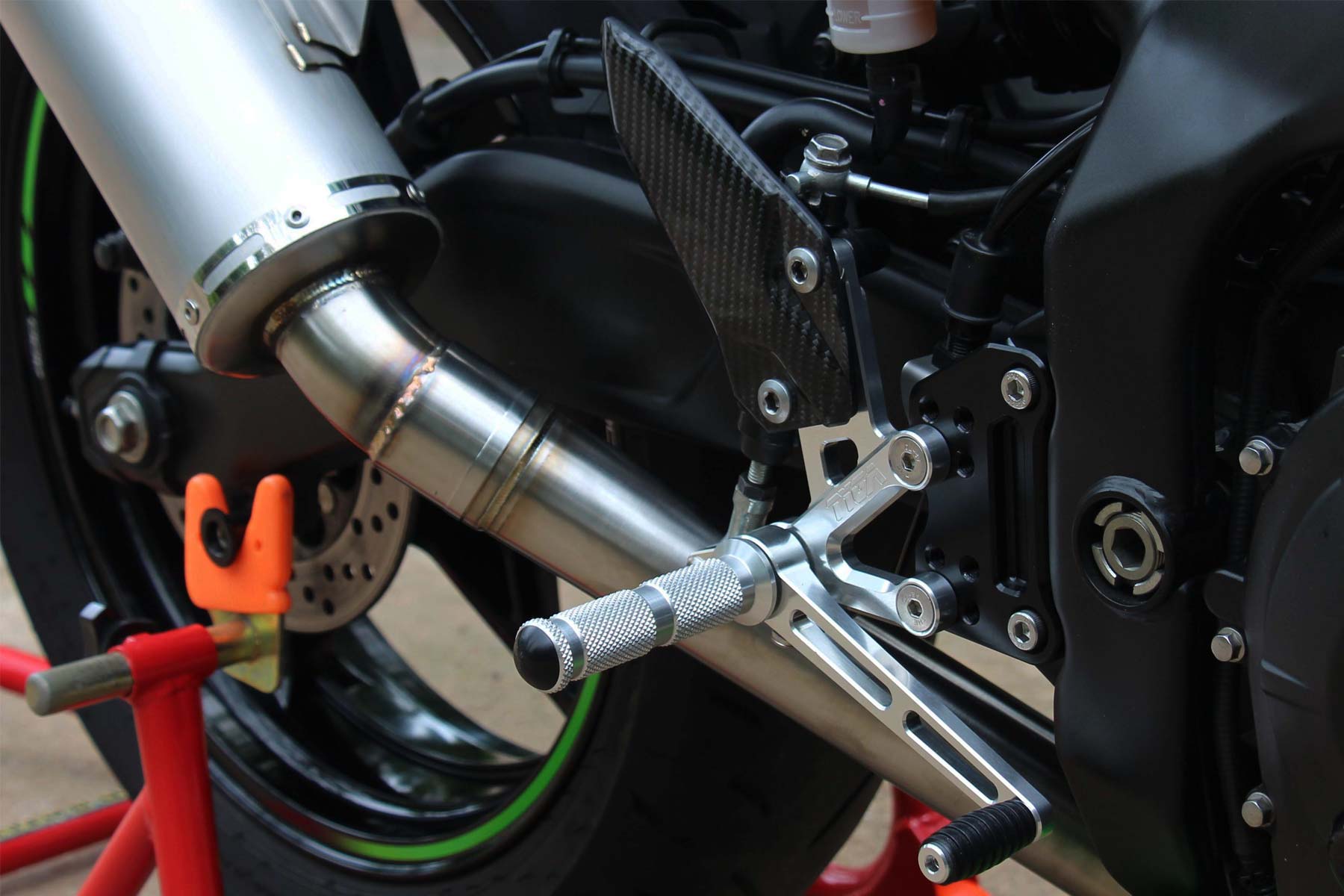

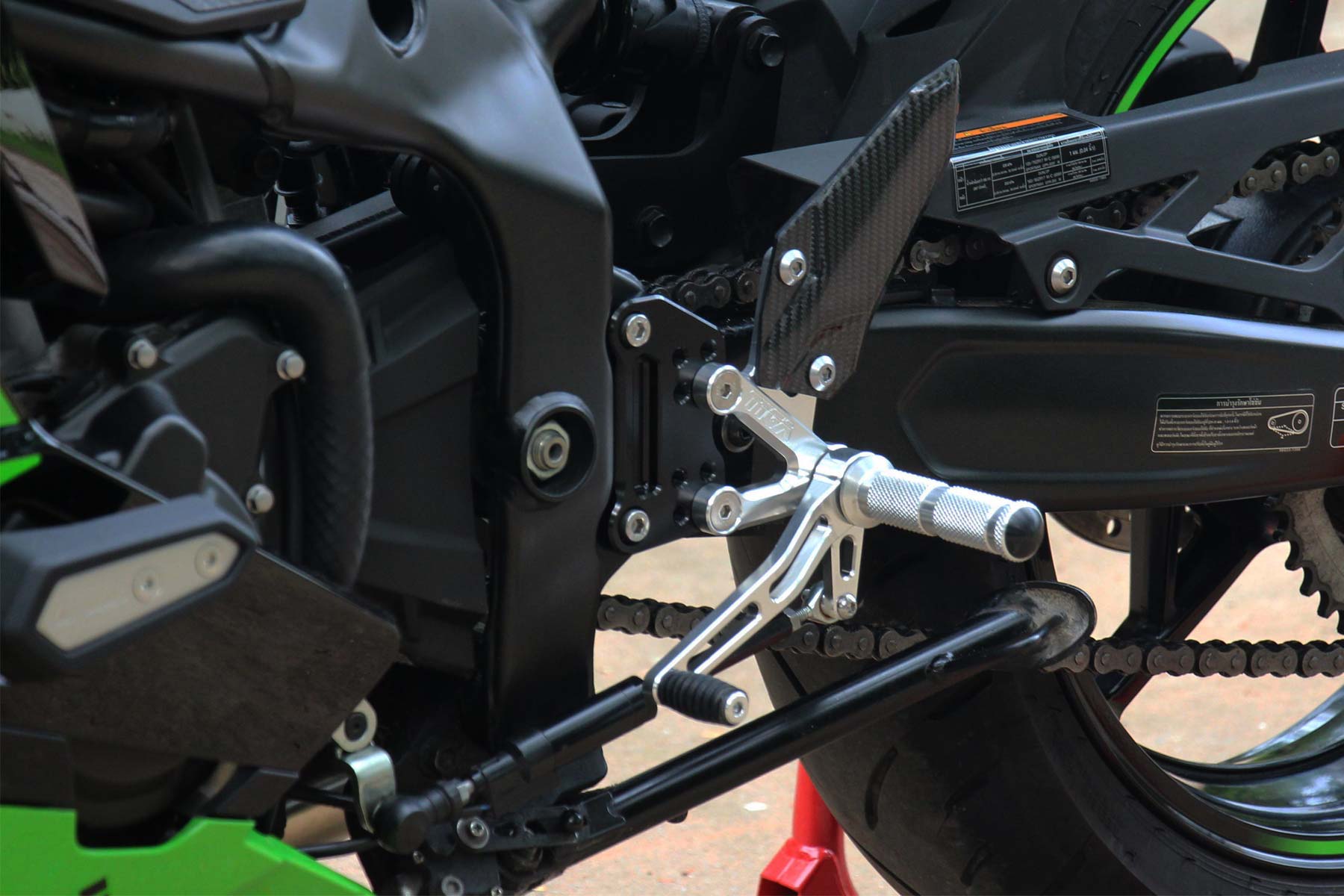

Designed in-house by TYGA Performance using the latest CAD/CAM software, these CNC machine-made step kits are made from top quality aircraft grade aluminium. Complete with OEM replica carbon heel guards on left and right hanger.

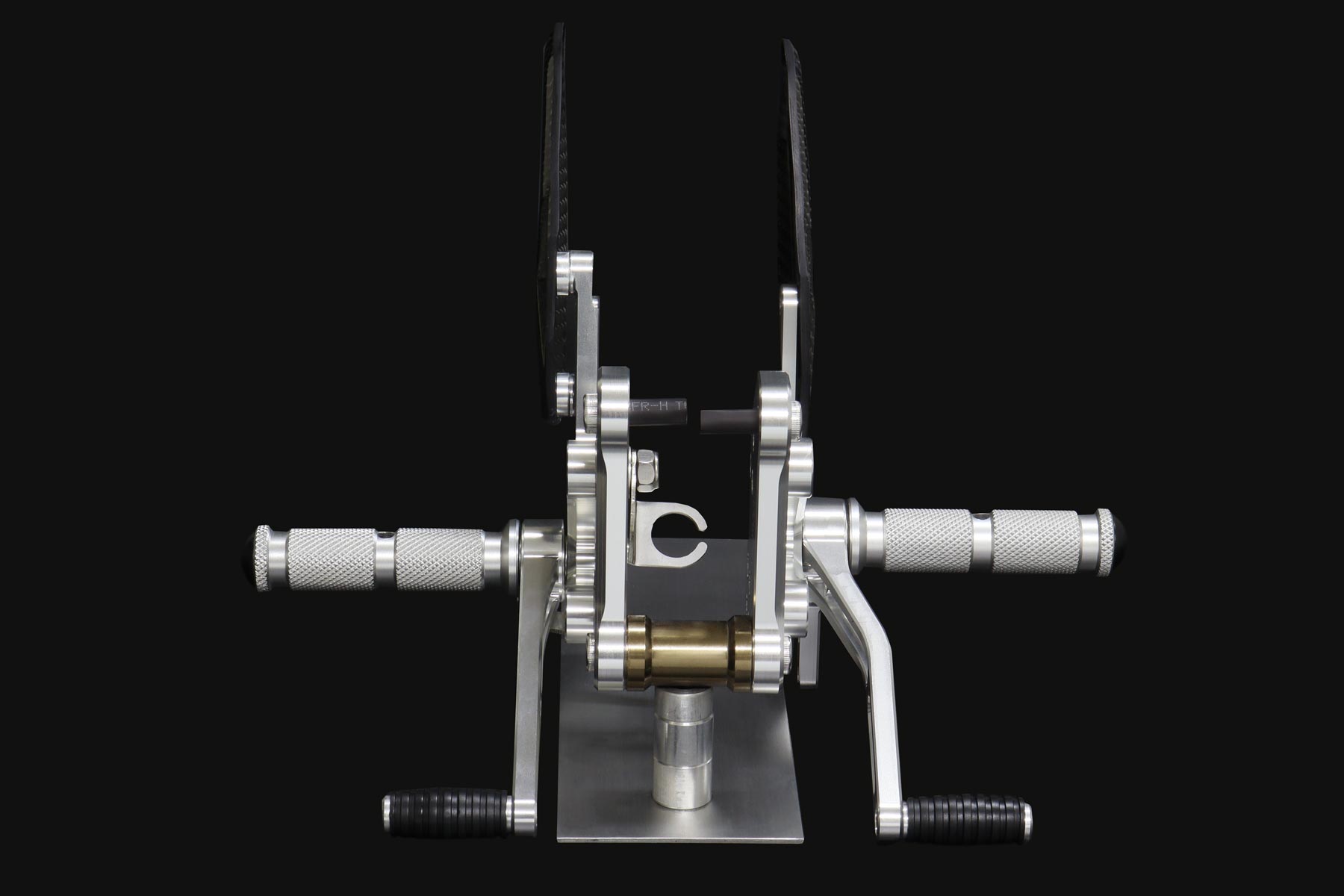

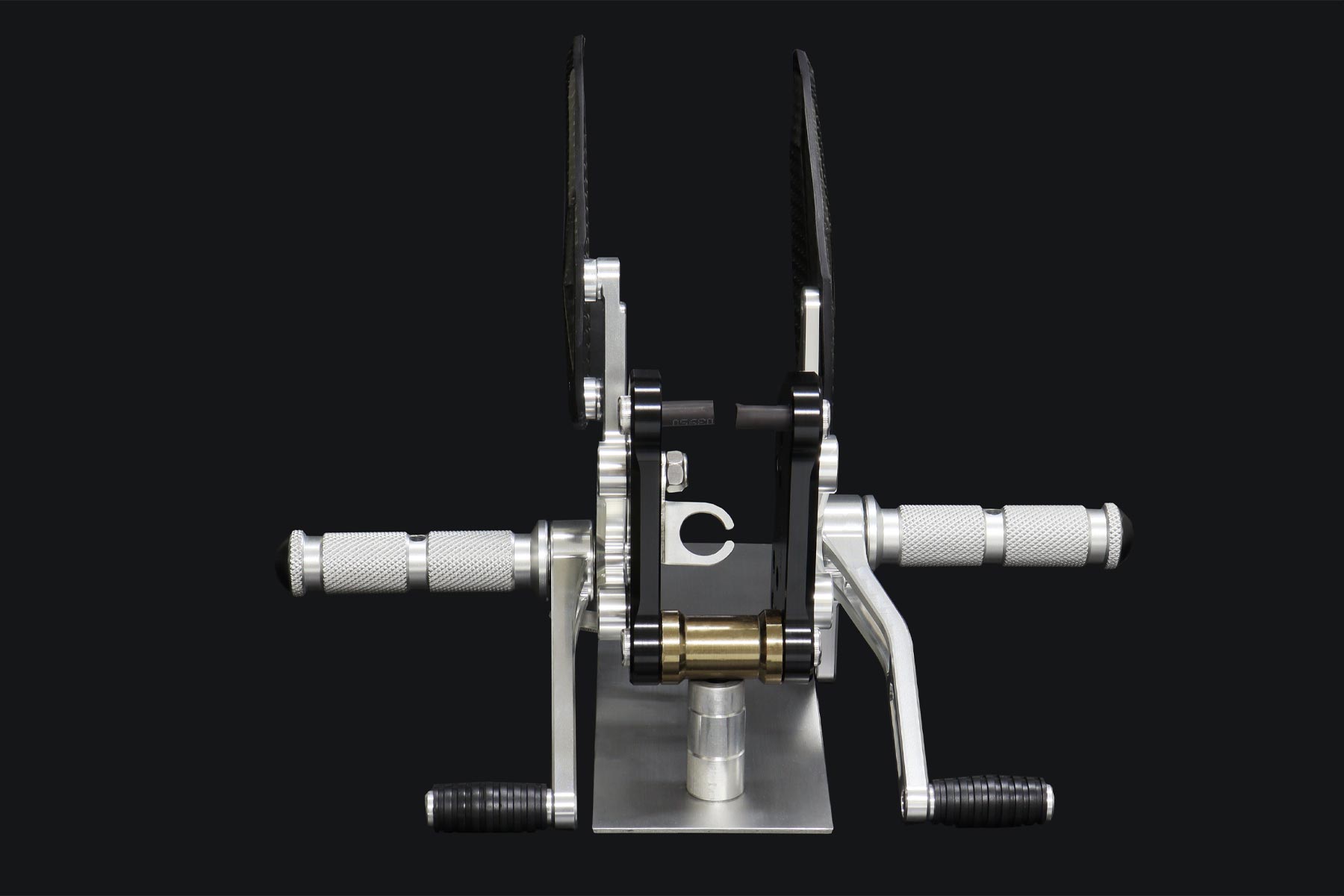

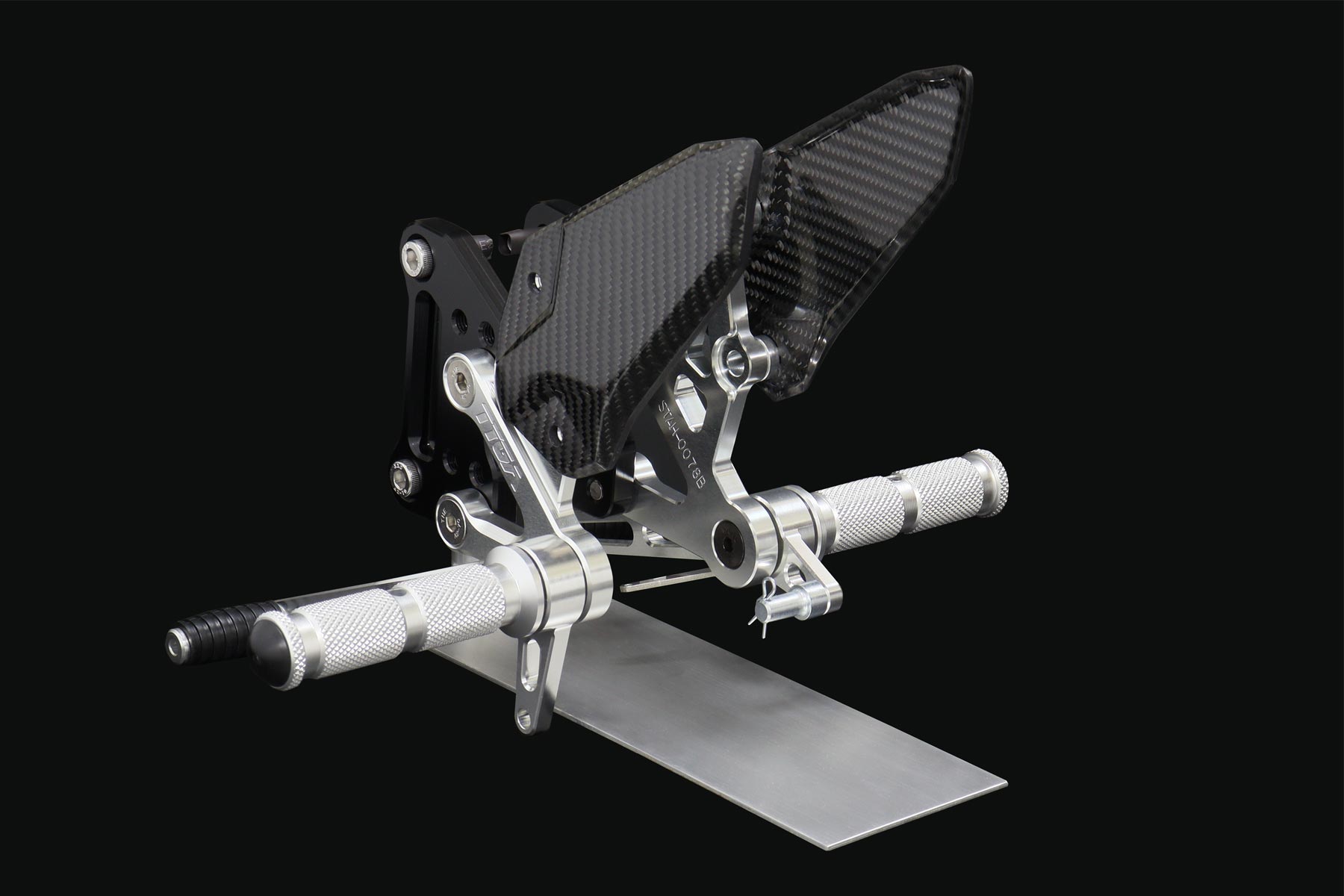

Please note that you have a choice of colour for the STAH-0077A/STAH-0078A Hanger mounts. Please see the pictures and make your choice in the attribute box at the bottom of the page. By default, we will supply STAH-0077A (Silver) and STAH-0078A (Silver) with this set.
Peg position is multi adjustable. The low/forward position is 25mm back and 20mm up from the standard position. Adjustable in a 15mm increment to a maximum of 40mm back and 35mm up from the standard position.
Street/Race shift possible by simply reversing the gear change arm at the engine side. No other modification necessary other than adjustment of the link rod.
The OEM Brake light is used.
Some repositioning of the brake hose and brake reservoir hose are required. Also, the choice of link rod for the gear change is dependant of the hanger position. Please check the fitting instructions.
For your safety, please ensure all fasteners are tight before use, and we recommend the use of thread locking agent (such as Loctite 242) on the 2x M8 bolts.
