Triple clamp set, CNC black, CBR1000RR forks to fir NSR250 MC28

Triple Clamp Set, CNC Black, CBR1000RR Forks to fit MC28

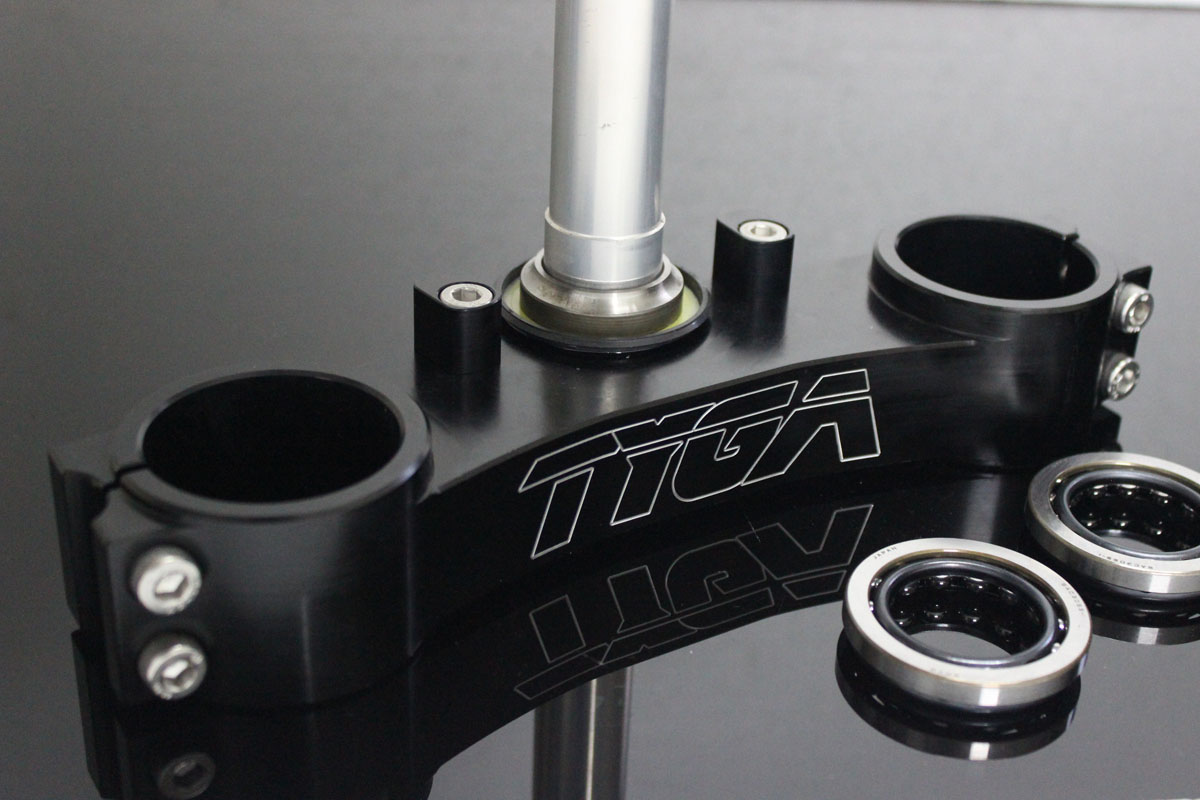

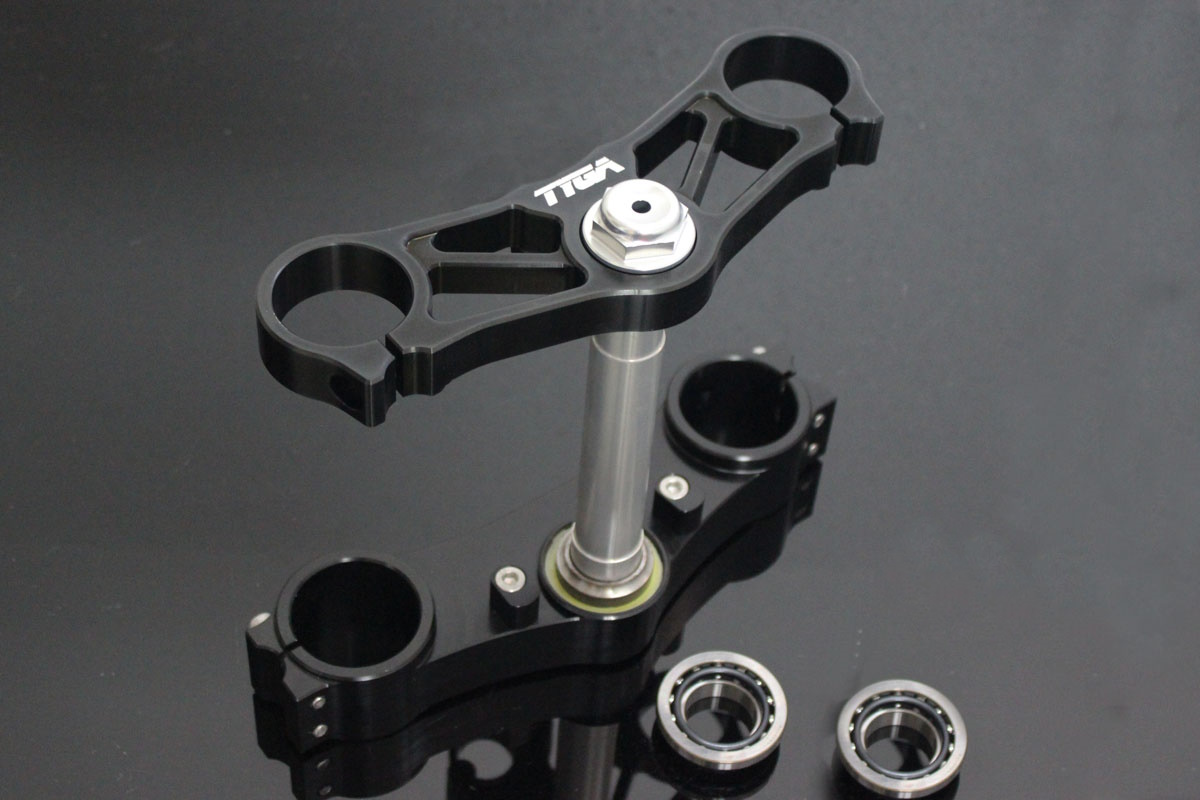

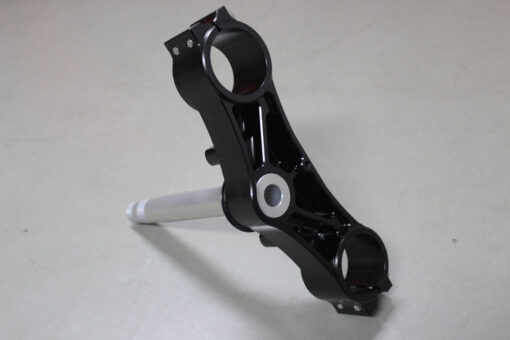

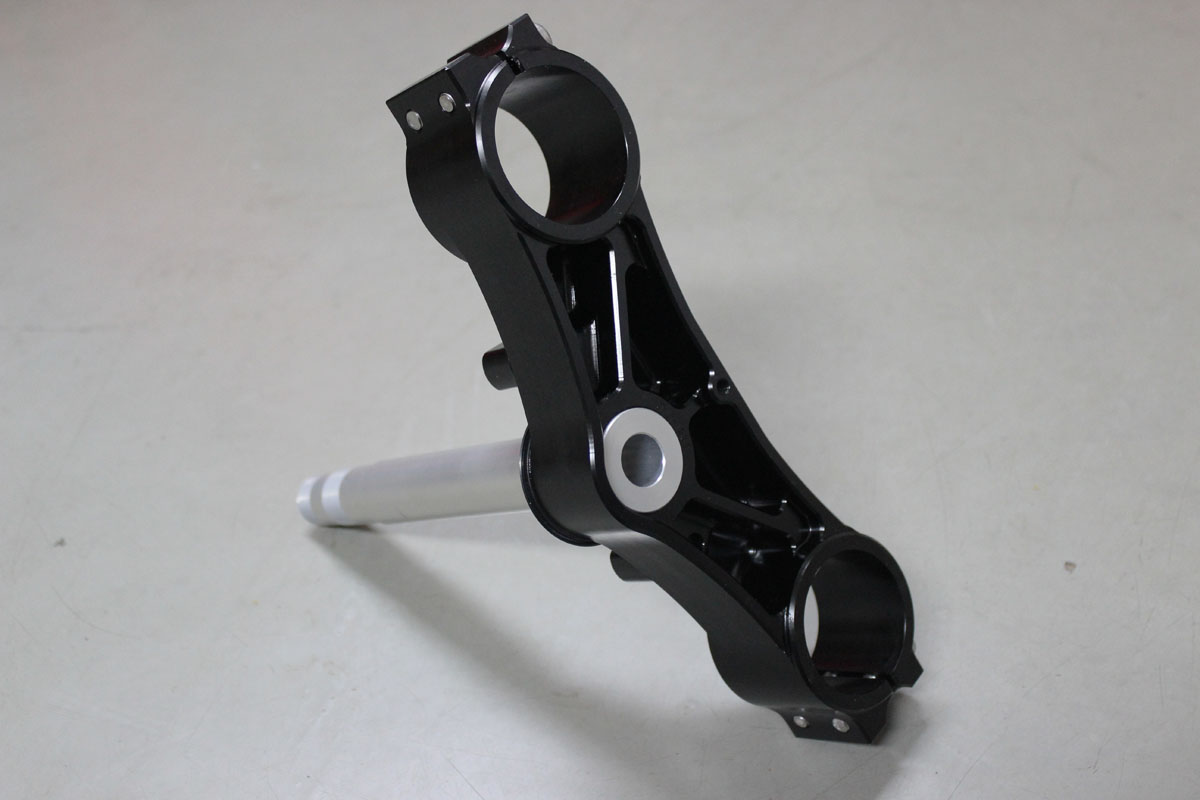

CNC machined TYGA lower triple clamp for the MC28 NSR250 to take 54 mm diameter CBR1000RR forks.

Designed and machined in-house by TYGA from aircraft spec 6061-T6 alloy. FEA tested and developed for increased strength without unnecessary weight increase.

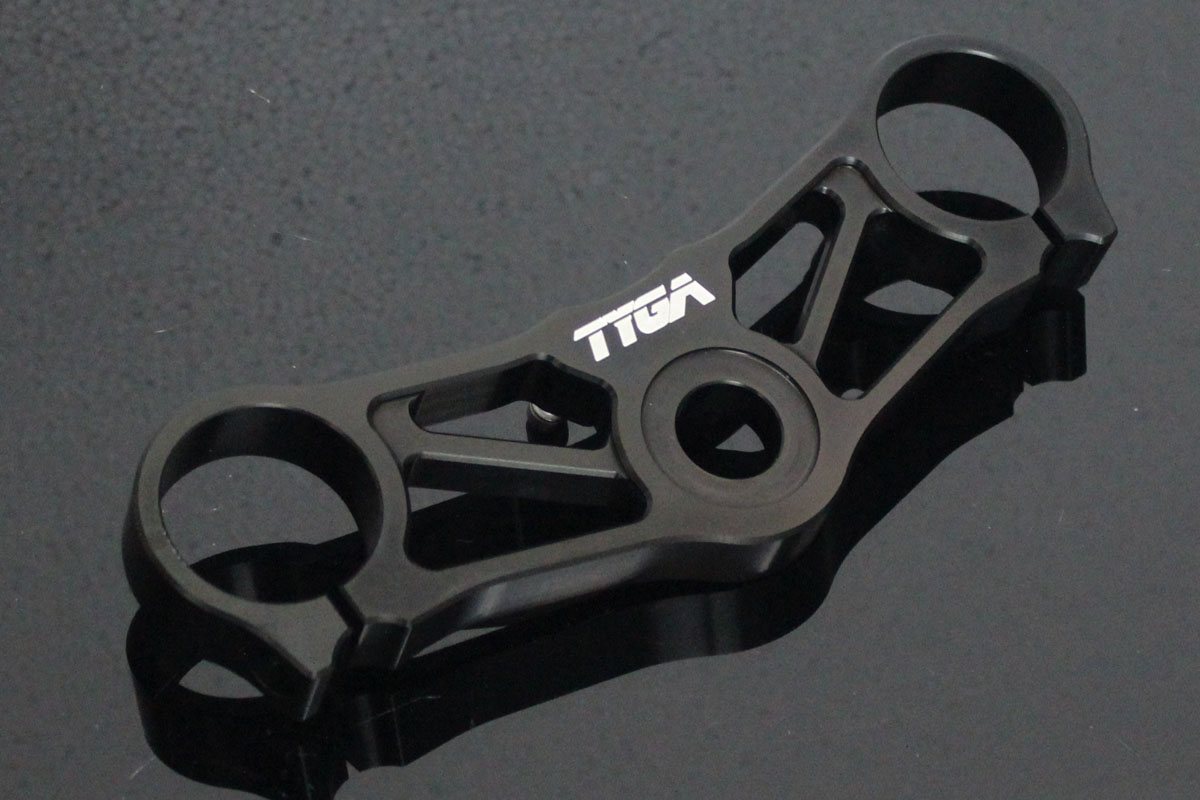

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation. The top clamp has the ‘bolt-on’ ignition switch/ lock holder fitted, which can be removed for racing.

The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.

Note, we recommend using Handlebar set 50 mm. TYLY-1078 when installing this triple clamp set to avoid clearance issue with the NSR fairing.

Tightening recommendations:

Lower clamp pinch bolts: 23Nm.

Top clamp pinch bolts: 23Nm.

Other products for a CBR1000RR Fork conversion

• TPER-0121: CBR1000RR 2008-13 Forks, NSR/NC Wheel, Conversion Kit
• TPER-0122: CBR1000RR 2008-13 Forks, Caliper Re-location for 310mm Discs, Conversion Kit
• TPER-0123: CBR1000RR 2008-13 Forks, Set, Disc Spacer
• TPER-0124 : CBR1000RR 2008-13 Forks, Wheel, Caliper, Disc Conversion Kit which combines the above 3 kits
